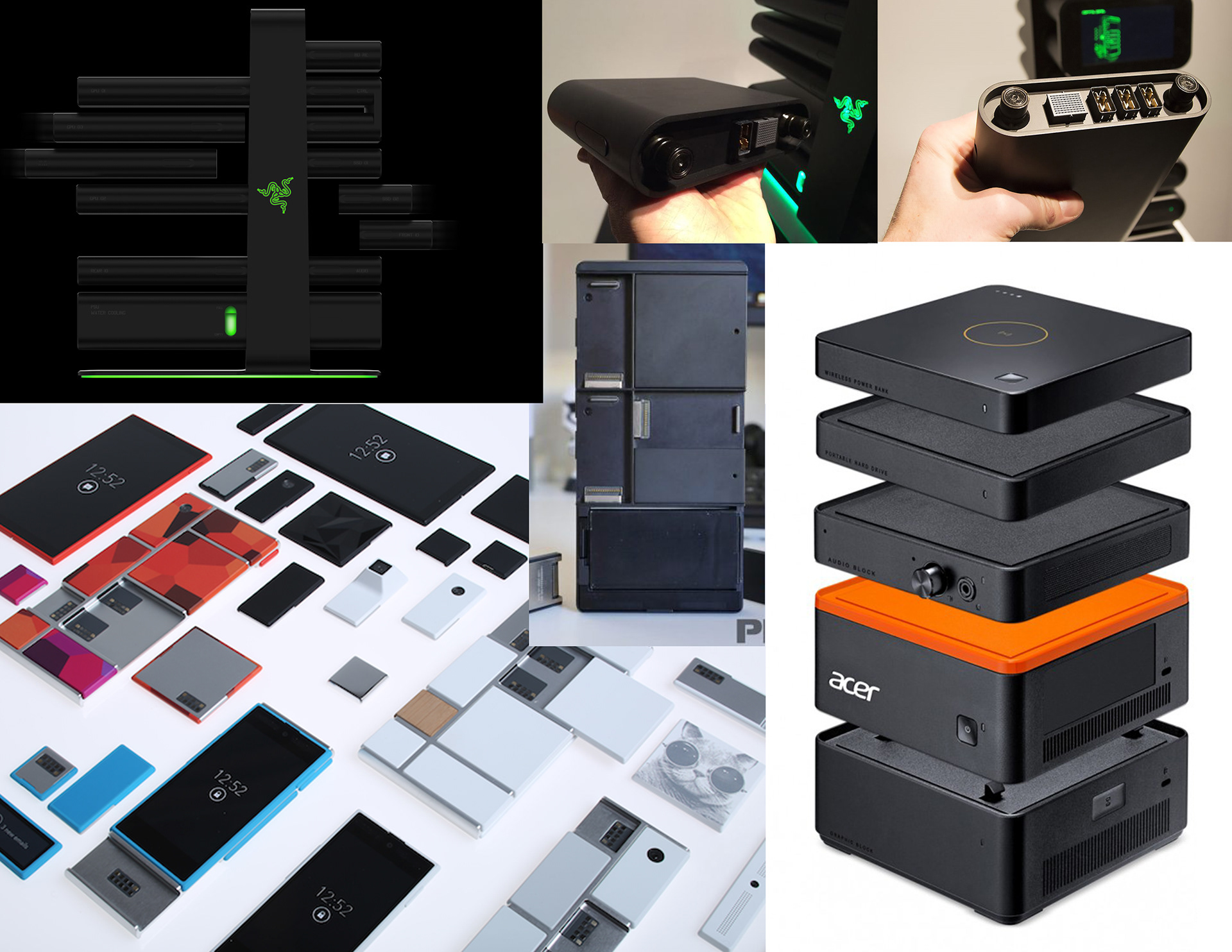

Mood board and research references
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/8e20e9c6-11ef-4602-bdcc-b86e533b79a4_rw_1920.jpg?h=b49e60b8c7e463125cd0a83561df1a45)

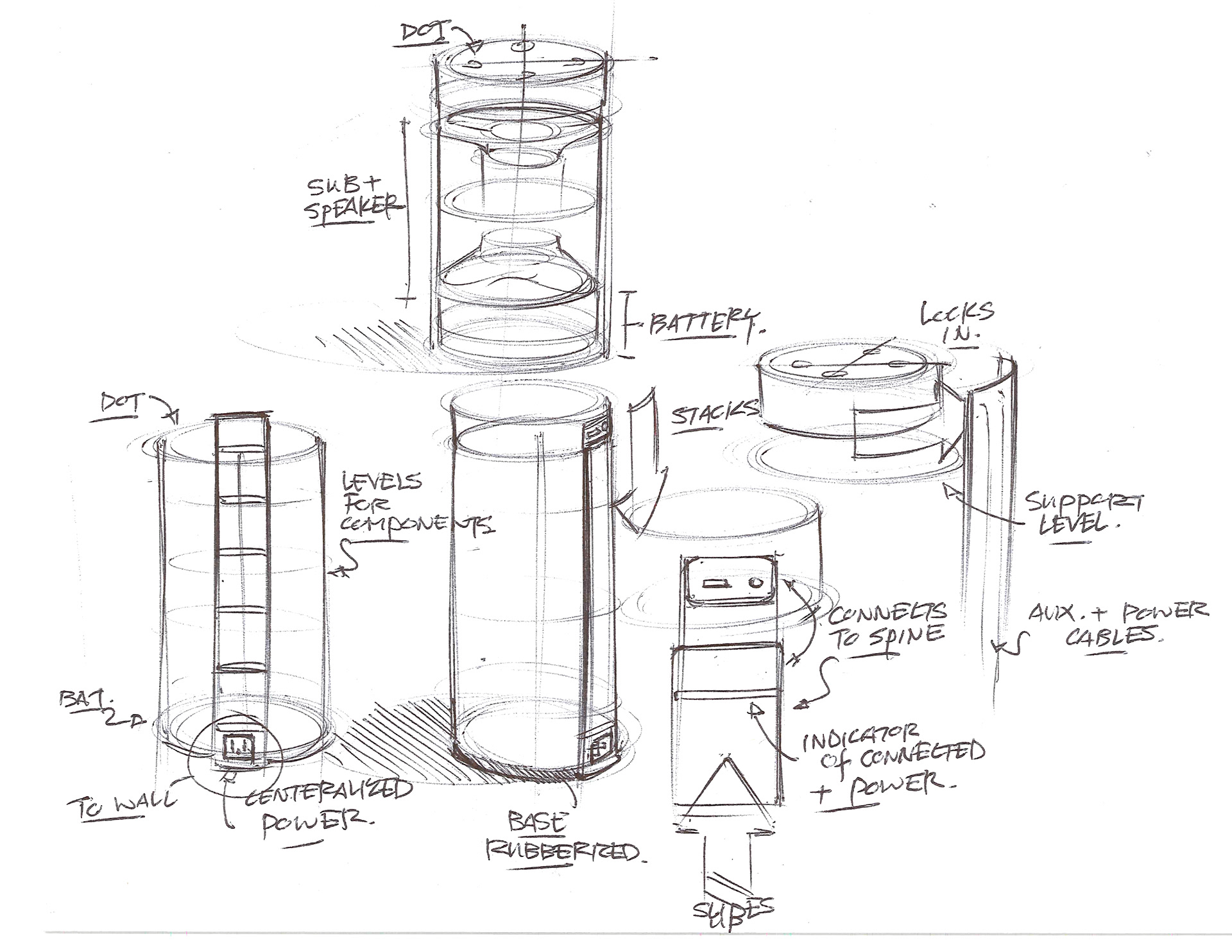

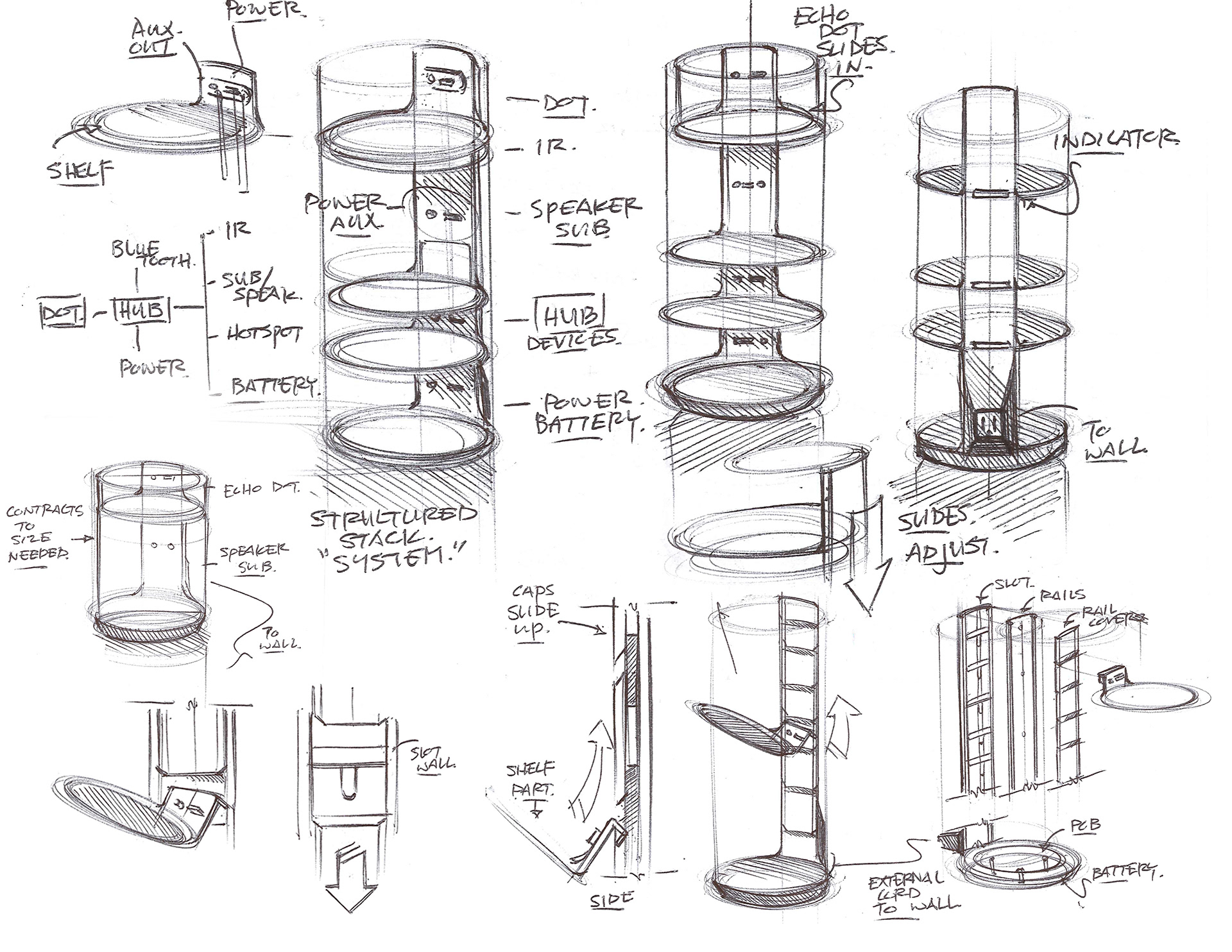

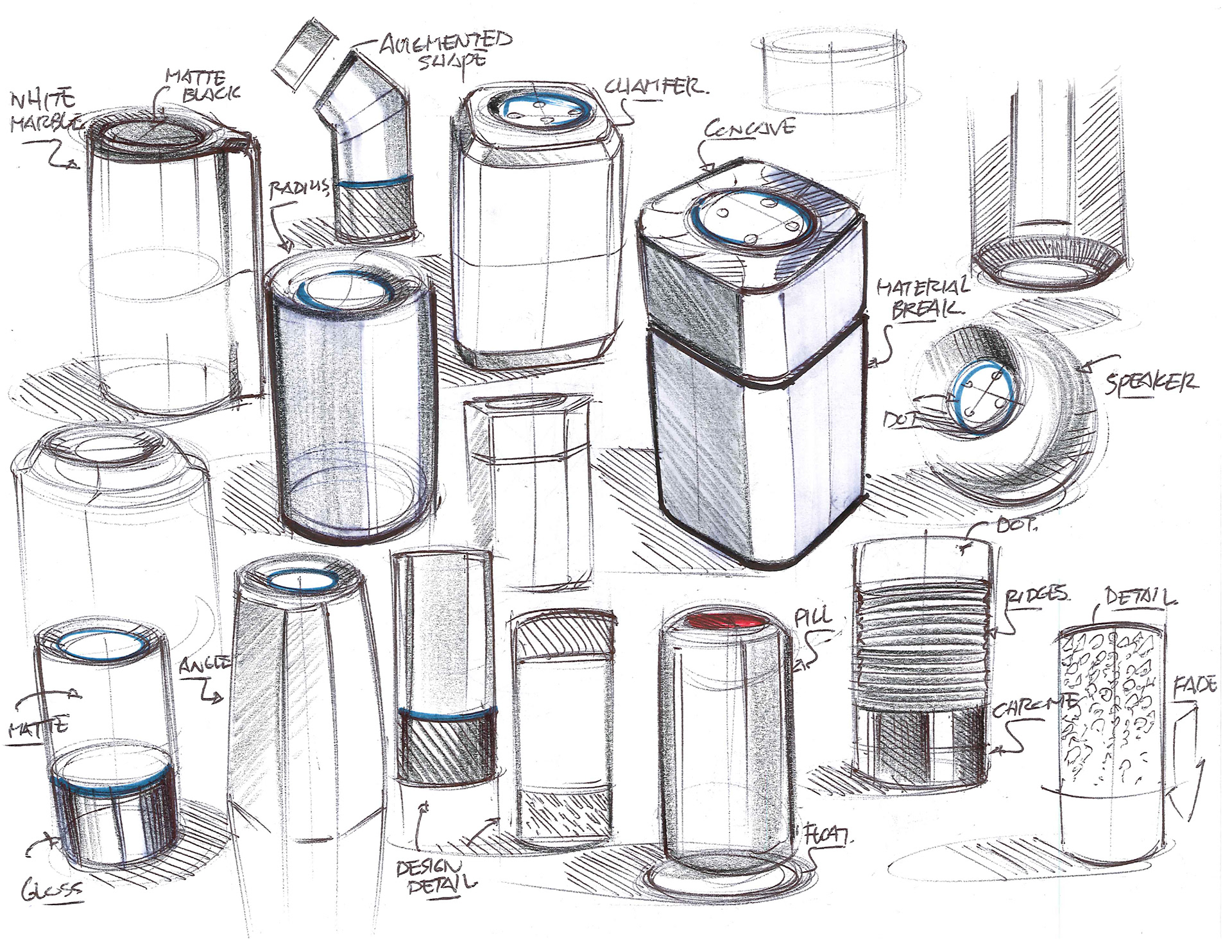

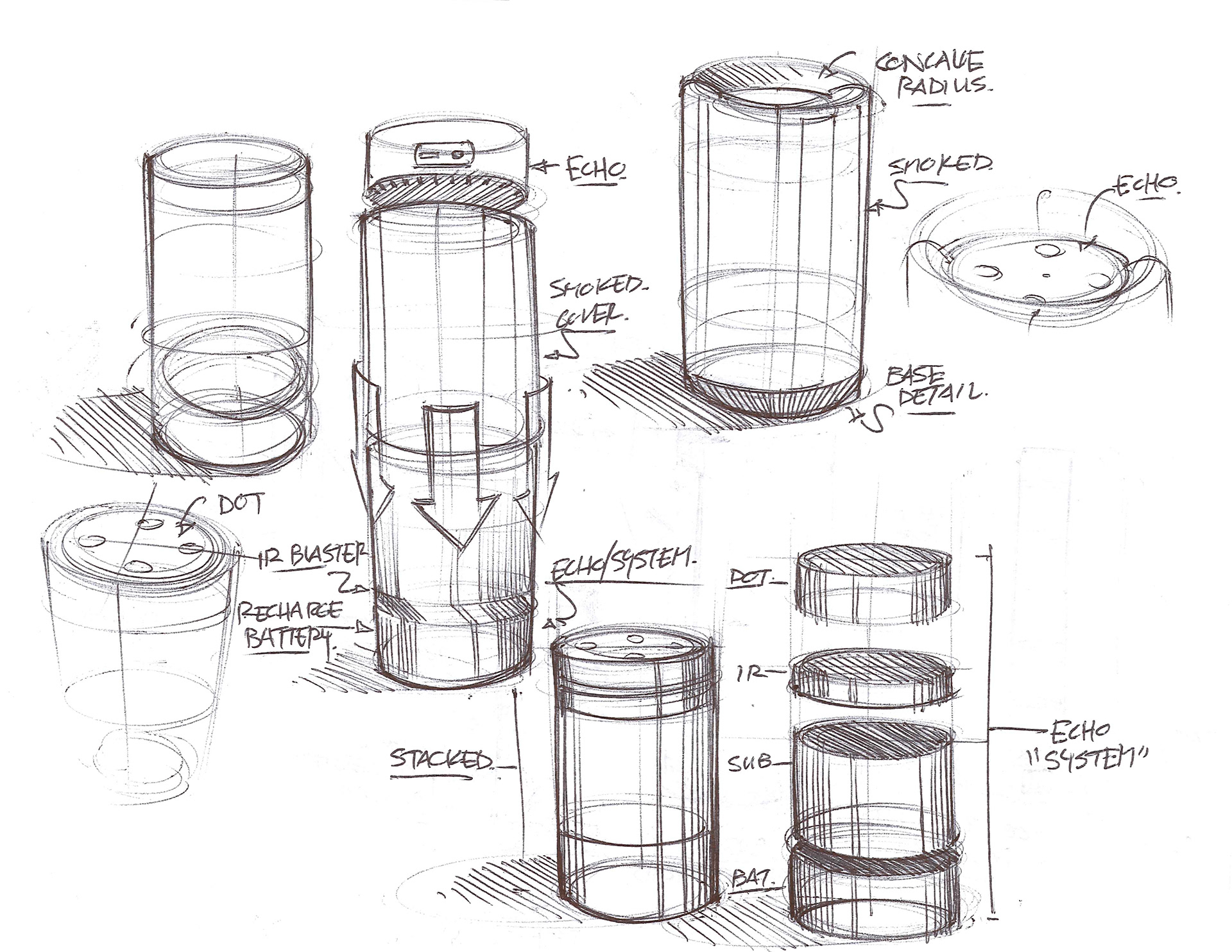

Initial sketch directions trying to find the right way of conveying this concept.
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/d8405c4d-9951-4b24-8488-4be06b1b4fcf_rw_1920.jpg?h=be6fd7cca95f6f24f67cc27aa0cb6e2c)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/149a698e-f65f-4c81-a9c0-1ef2b37273f7_rw_1920.jpg?h=f6a237a64744d8685403e1bfcc2f677f)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/7de4a024-944a-4109-bd6f-91583f189f07_rw_1920.jpg?h=79f4738059487ca980ae9eb7242d4db5)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/4c2fe415-15b0-477f-bc59-ec31b76868e6_rw_1920.jpg?h=7d0a8489de6d4eb050fc44b9bc8563df)

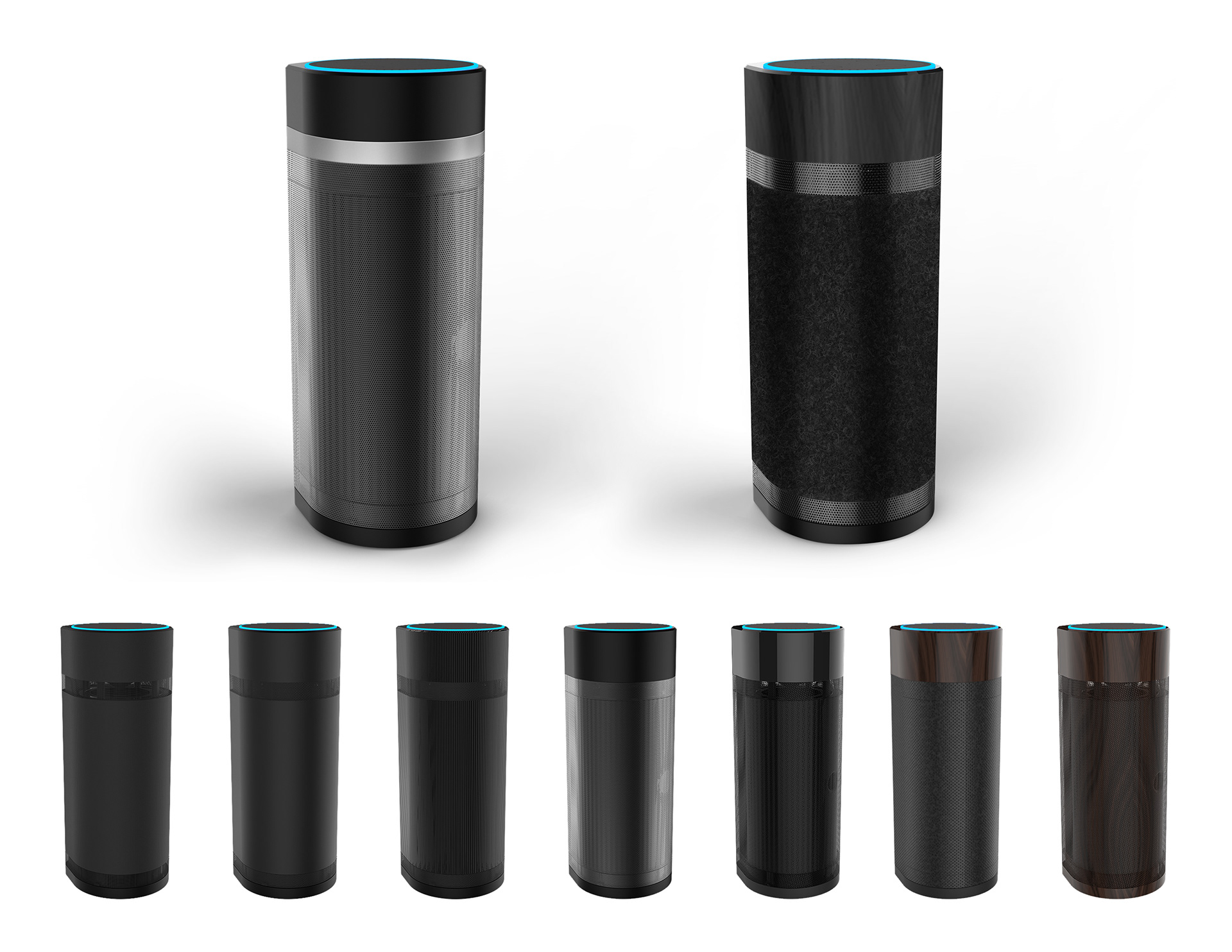

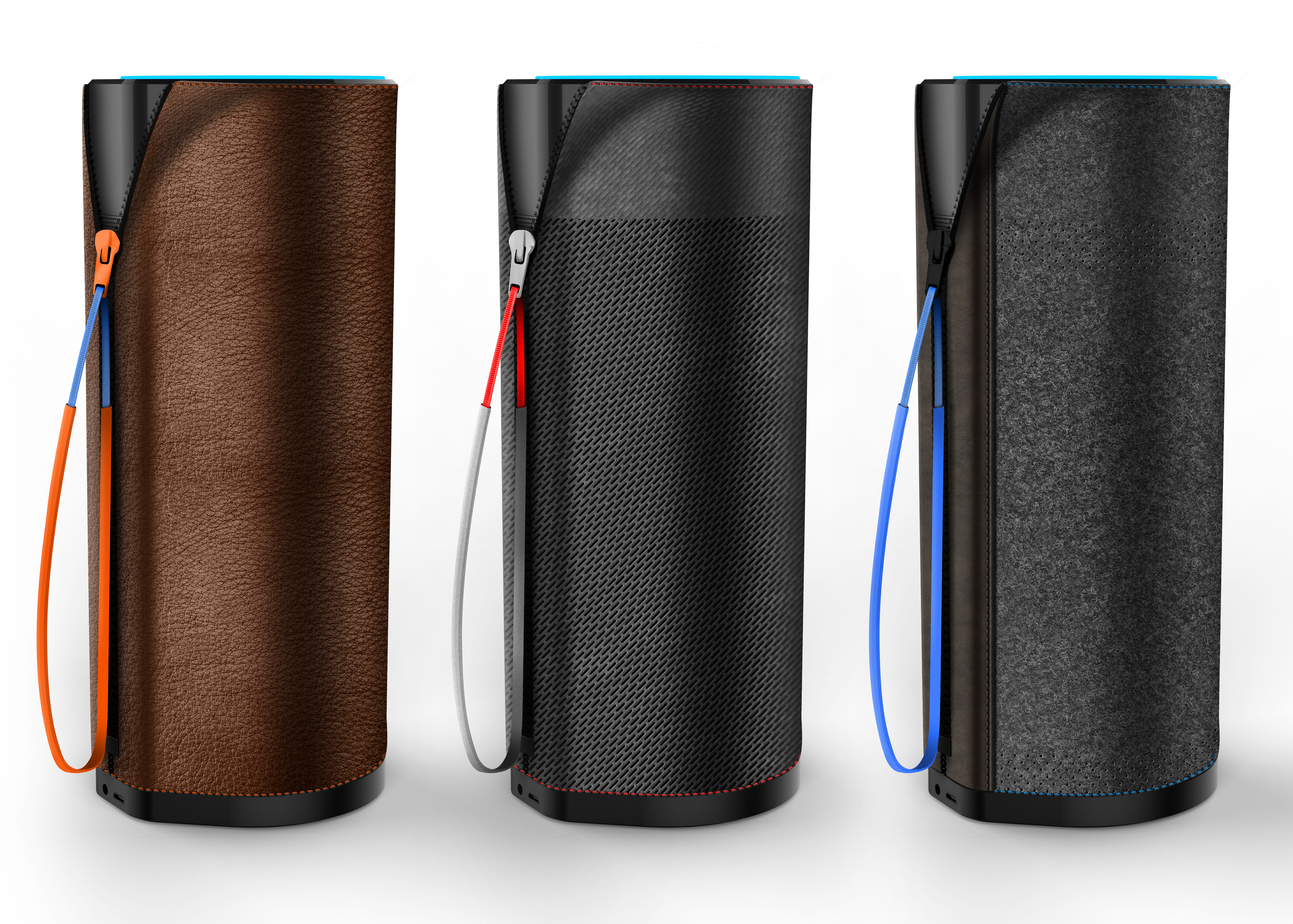

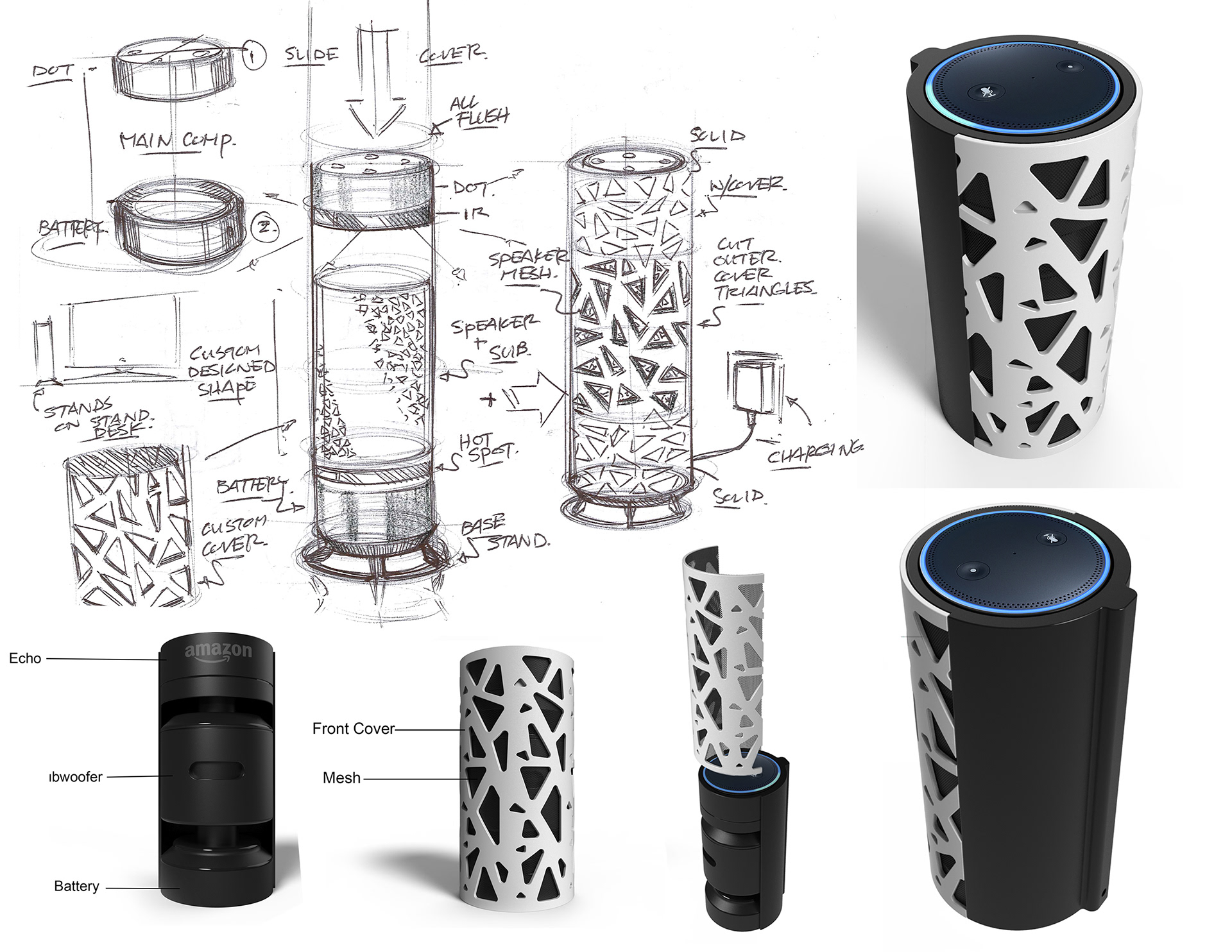

Concept directions lead to core designs that were focused on customization through aesthetics versus overall functionality. This was soon scrapped to focus more on functionality.
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/8ad66a87-632e-429e-b3c4-b4c0b1ab2c6b_rw_1920.jpg?h=d18508f151a4fa45d4ee551a62056d56)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c56e50be-2f10-4274-82b7-3fb3235d15e0_rw_3840.jpg?h=c22ffbc6d31c10ec04f5a91ccc58a978)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/8c5ff060-3621-41ce-97b3-da9a962a4ffb_rw_1920.jpg?h=abf14fc2bea4a9af4656eaa8a0f62af0)

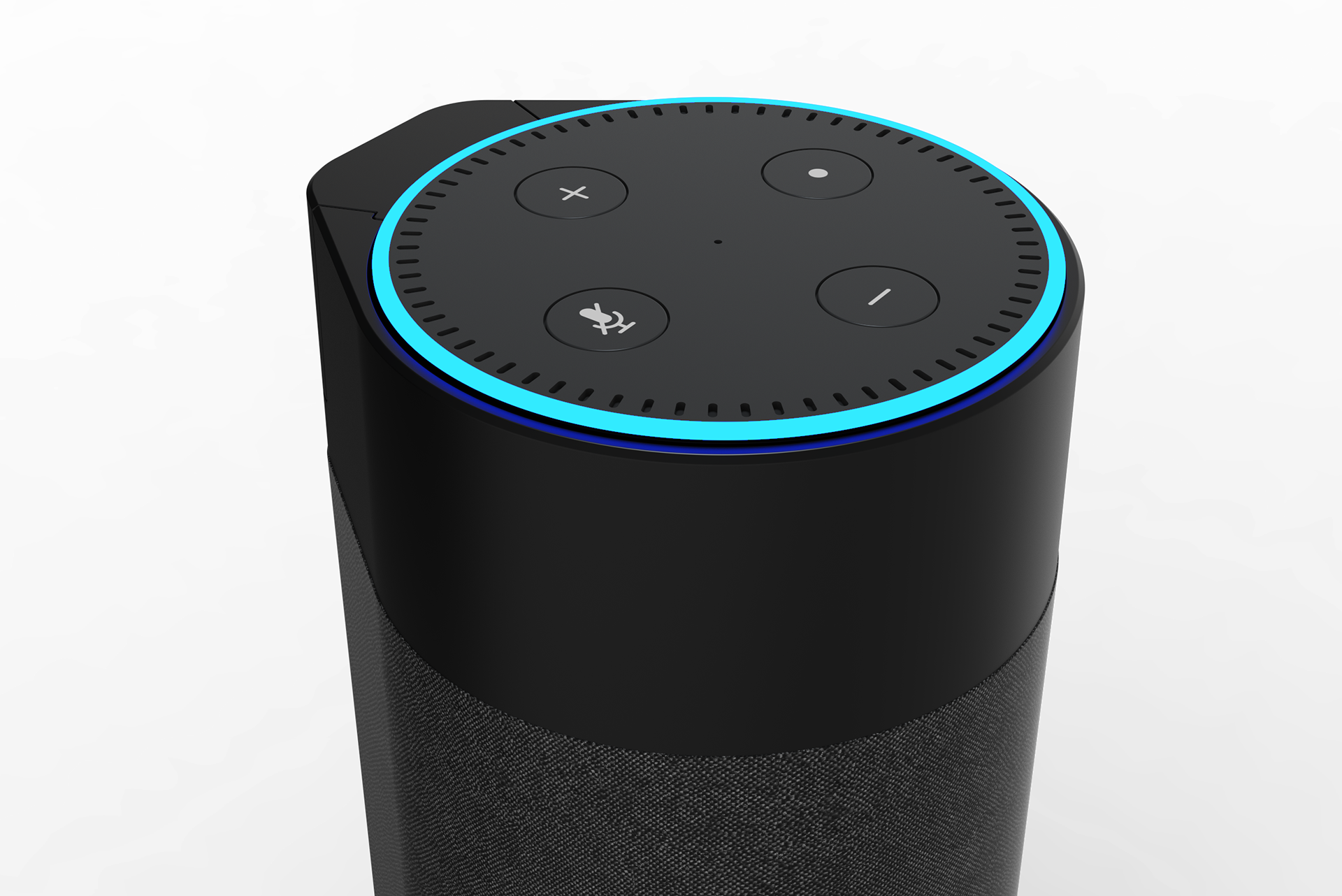

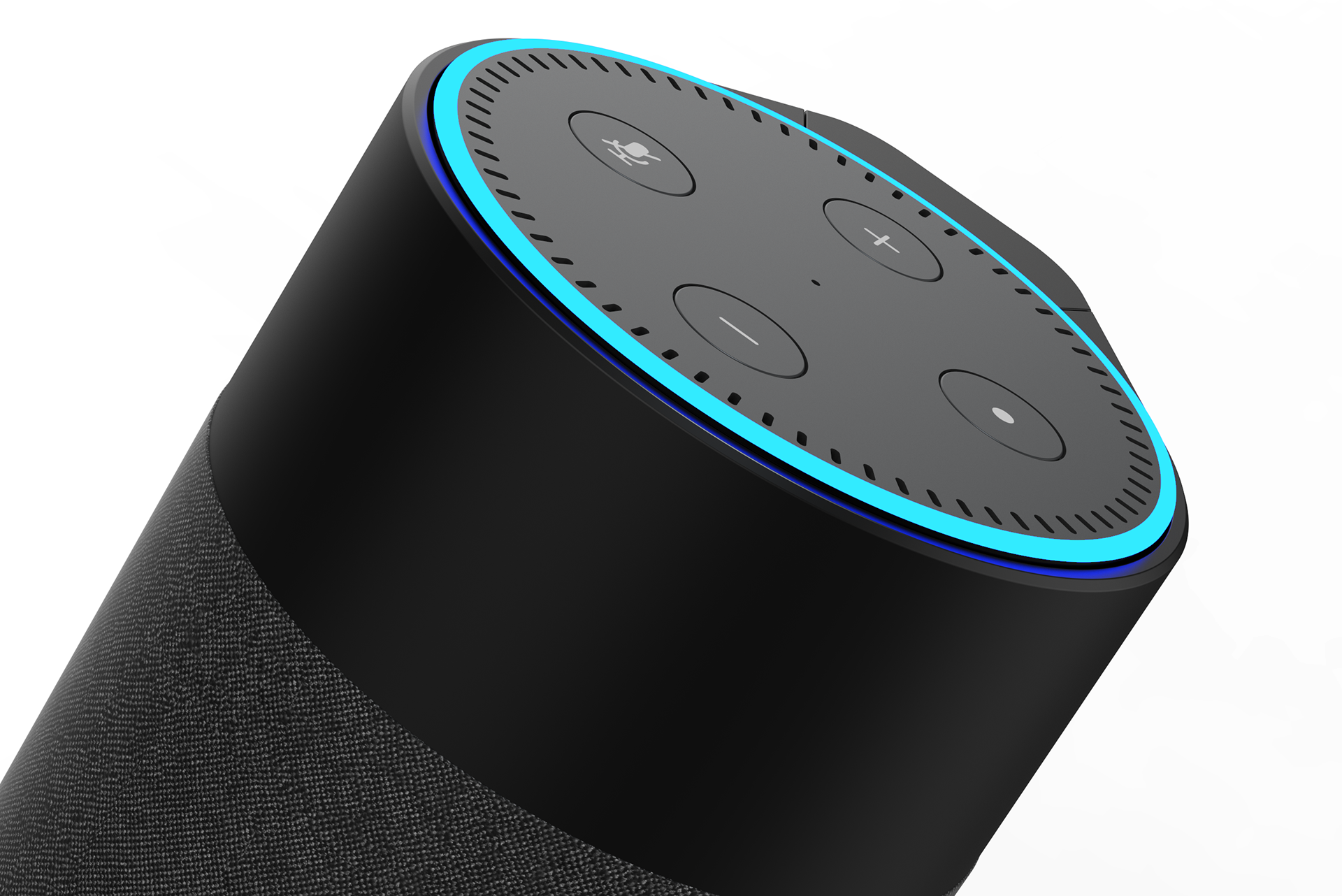

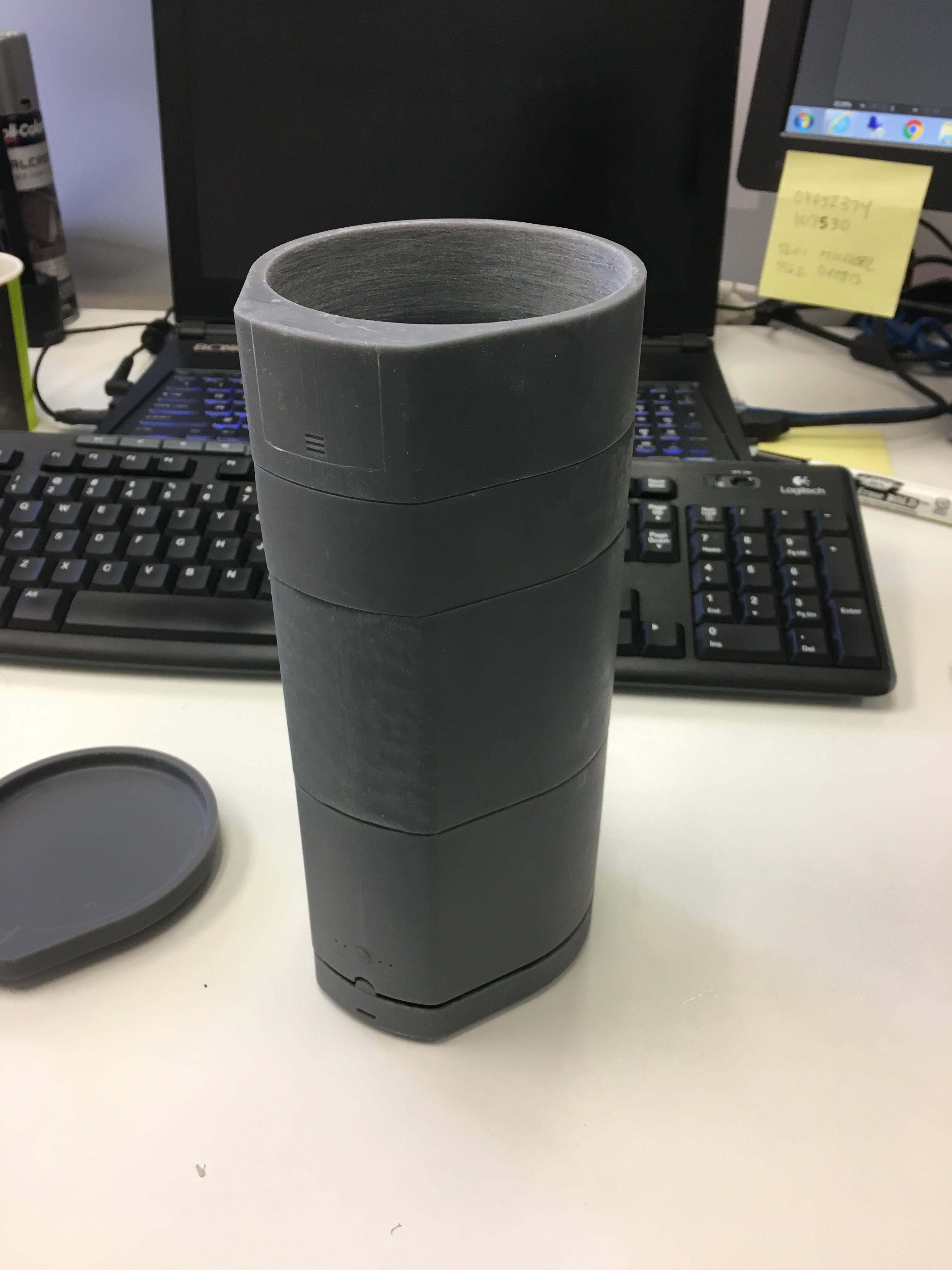

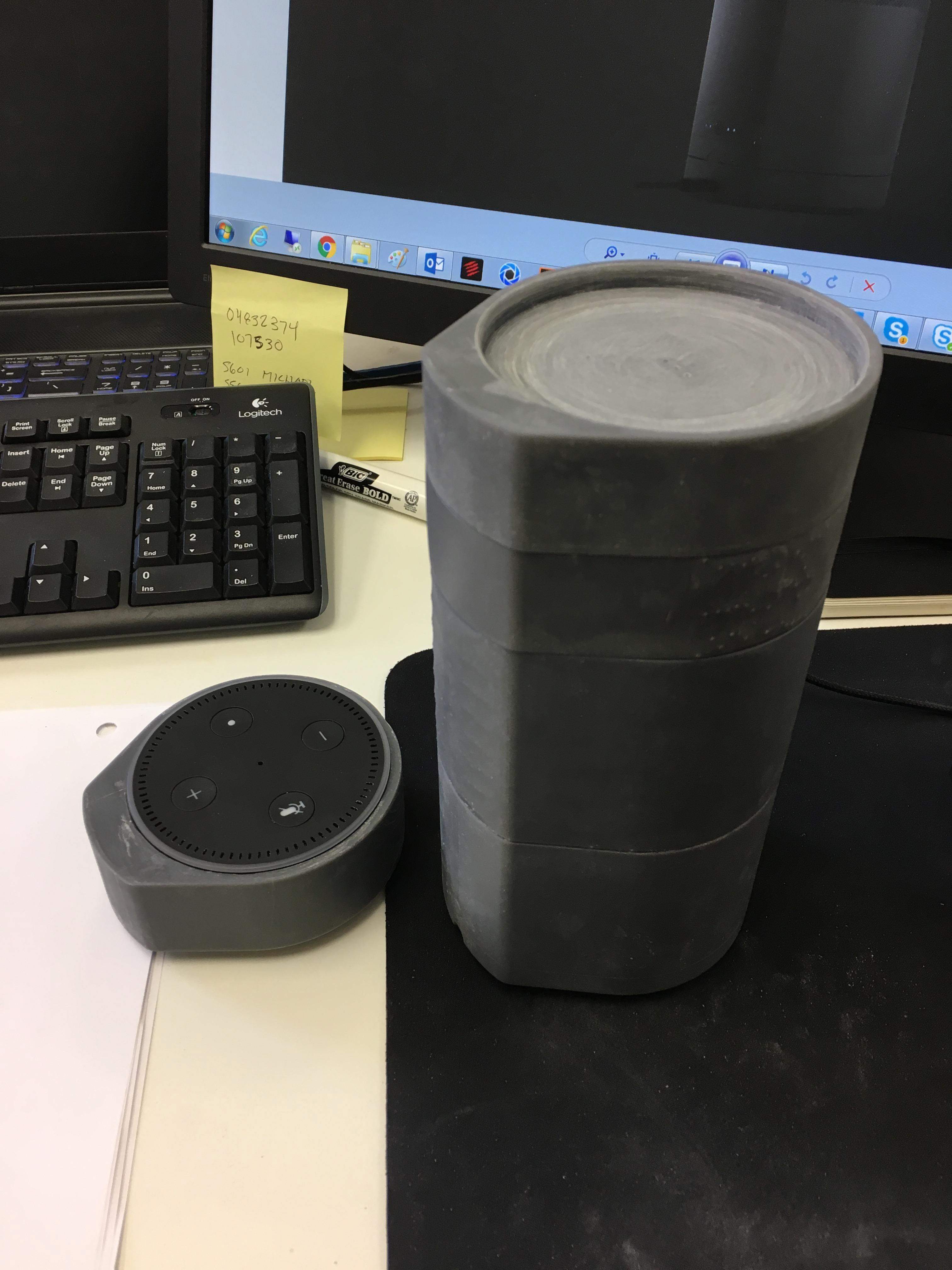

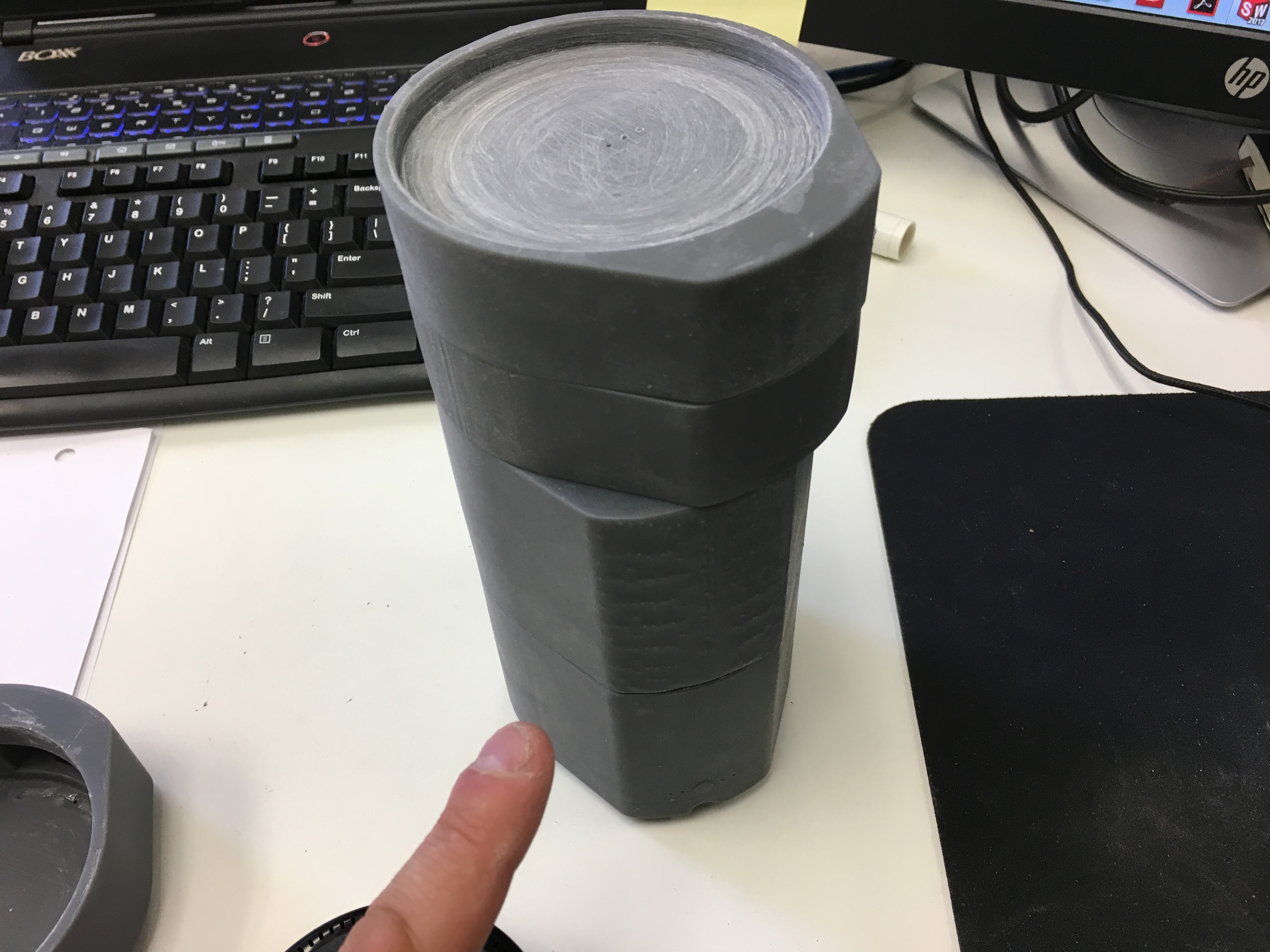

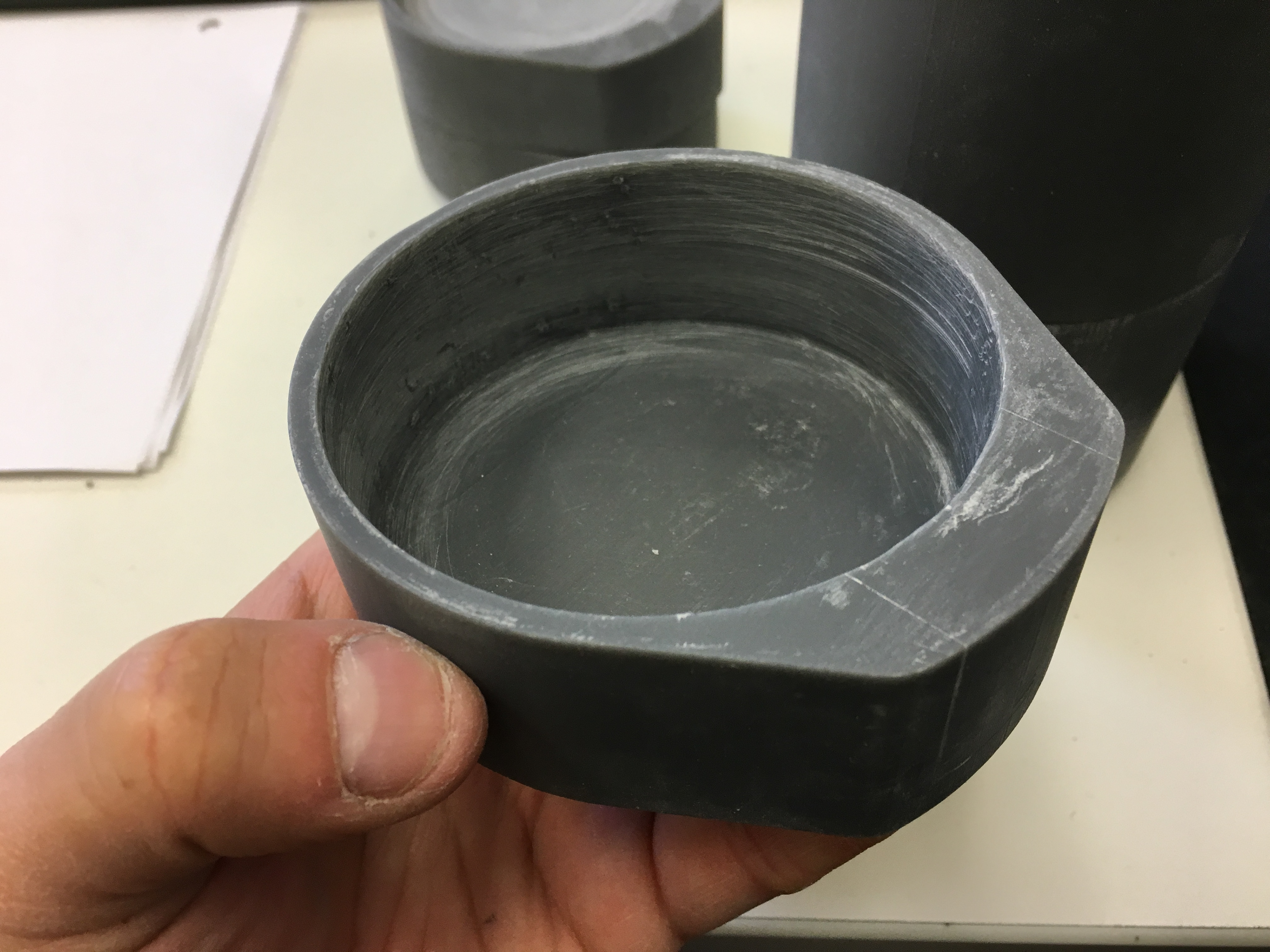

AMP360 Final Images
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/6fe128a0-ee4b-442c-b358-8559b4ce2410_rw_1920.png?h=5188f4eea4720f3baed3ba64141c664d)

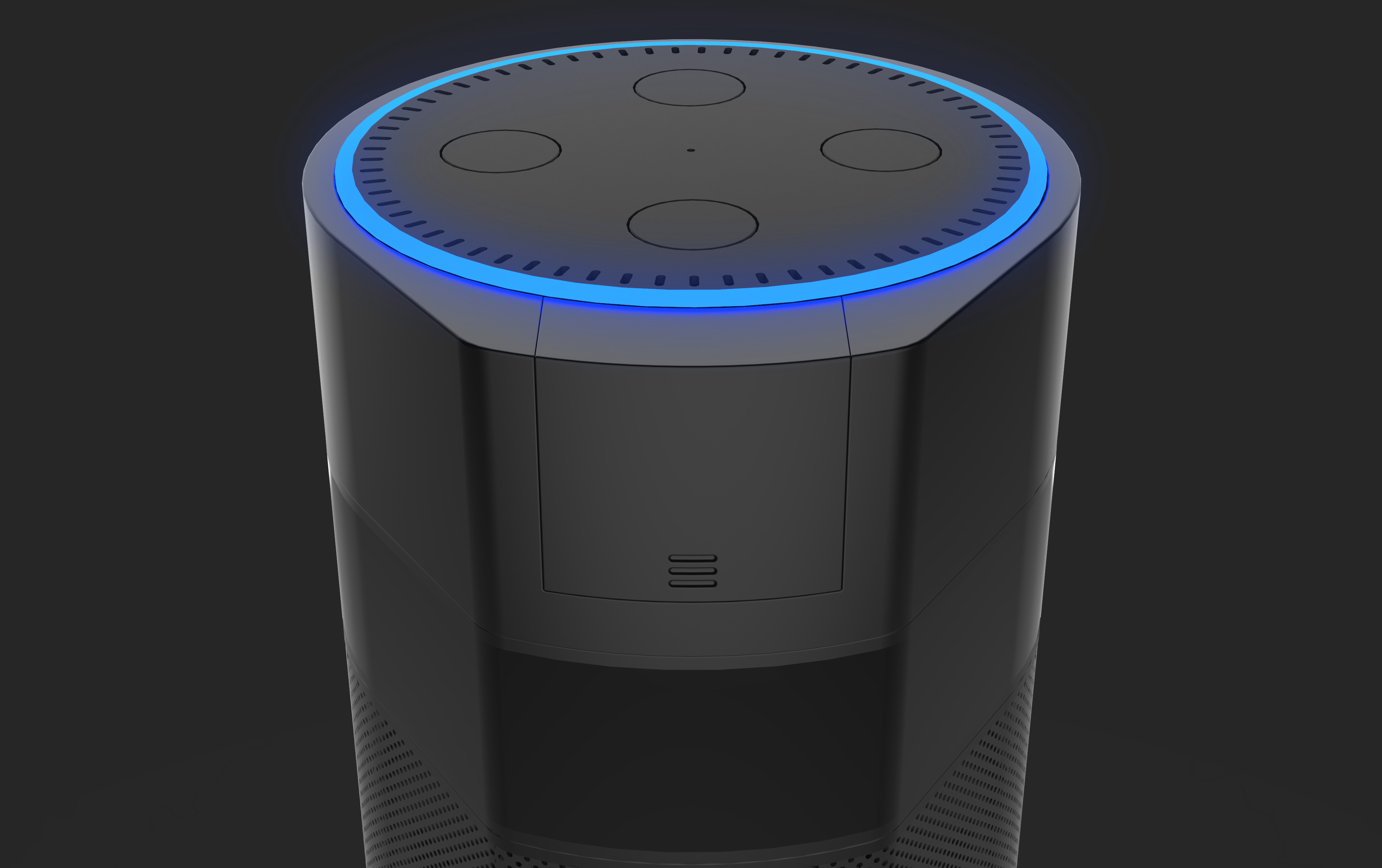

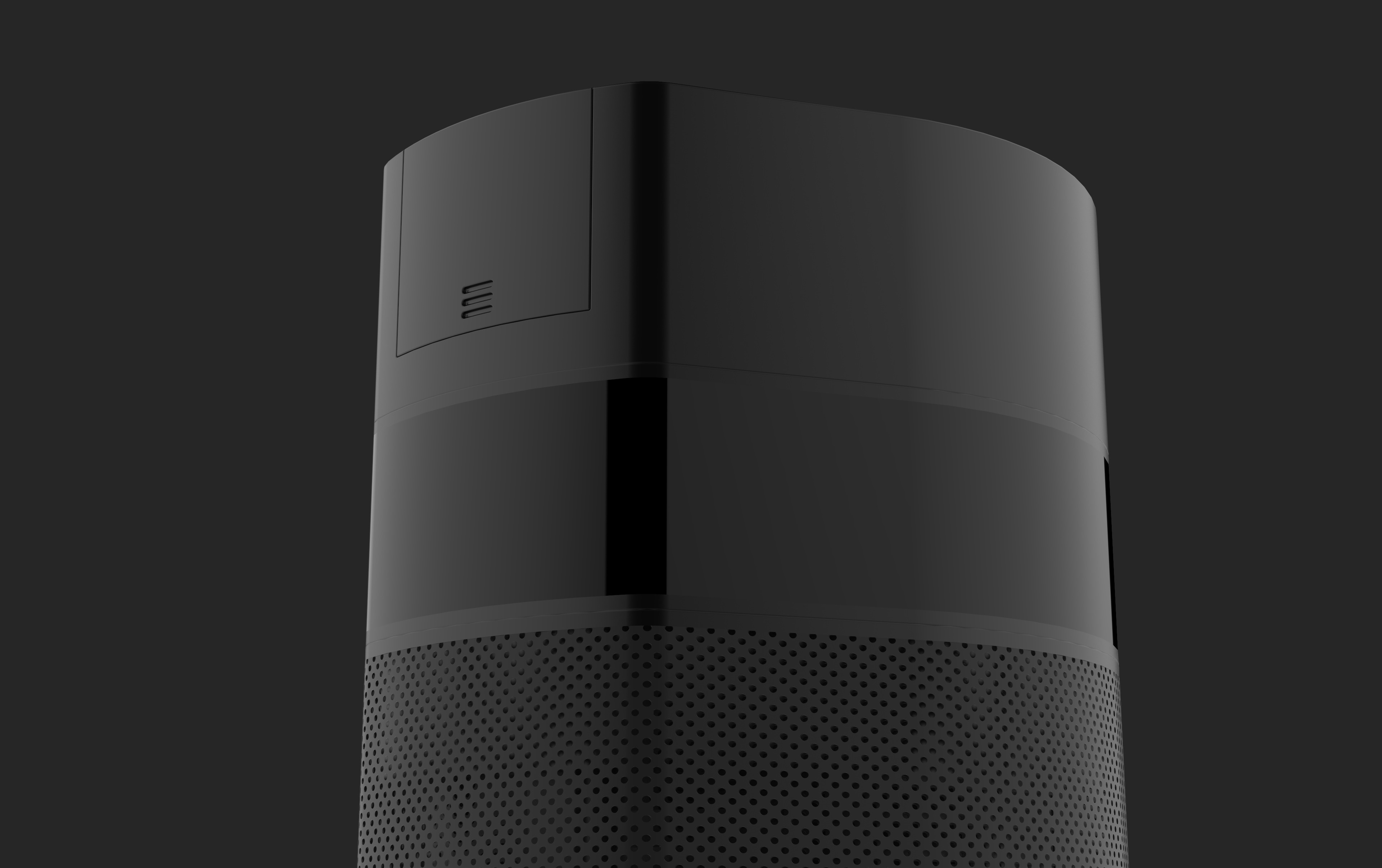

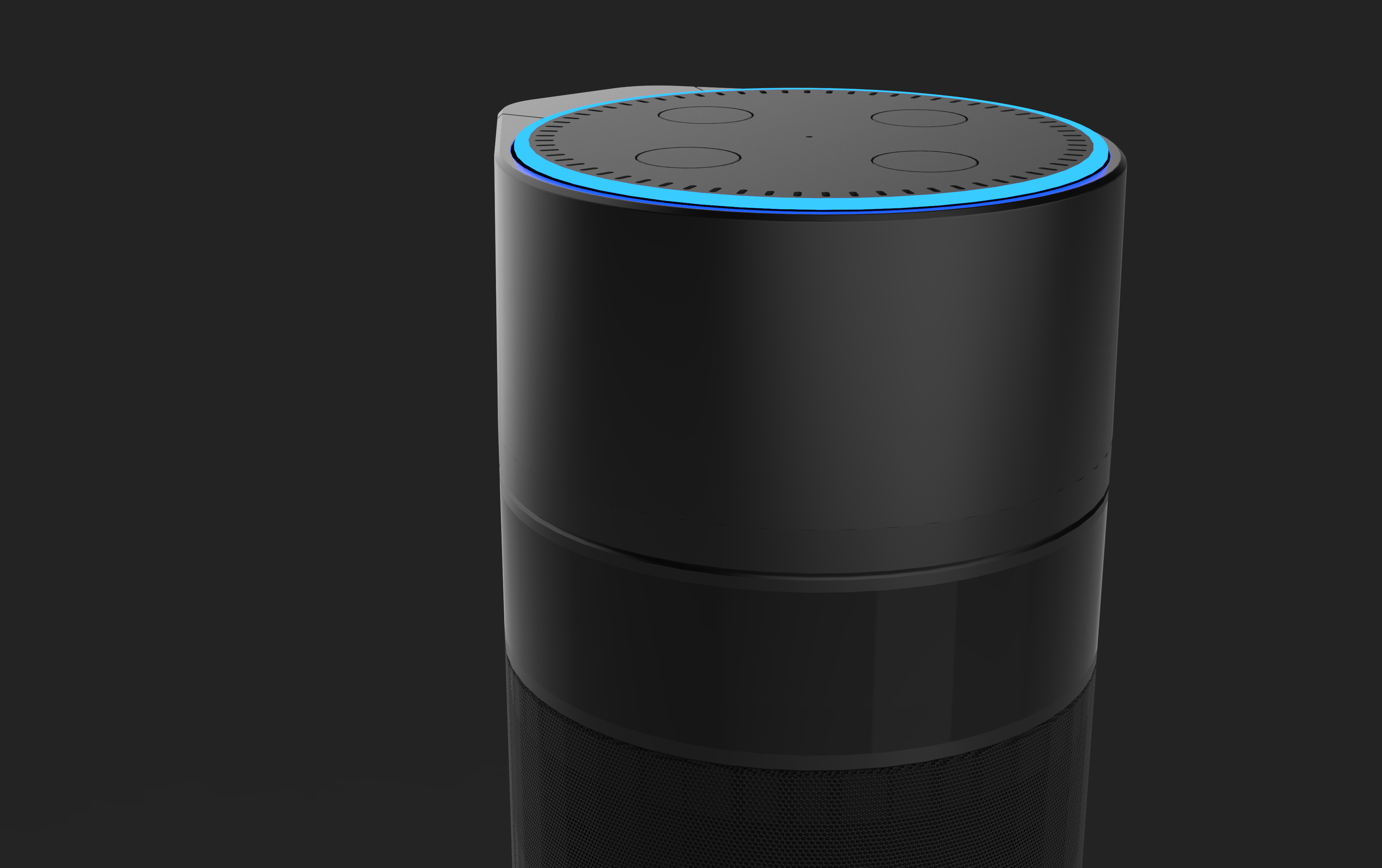

To install Echo Dot, remove the cap panel and secure power and data cables to Dot.
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/f98299e1-9a3e-4069-8c07-22eb42156a25_rw_3840.png?h=e42a9f8c3717863a565bdc75abc6fb97)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/846e5ad9-9e84-44a0-803b-6b2b67503748_rw_1920.png?h=113150fa1d236ea8ff934d7b71c31c75)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/80980eef-498a-489b-bc9a-0e29287ab628_rw_1920.png?h=de90bbe376bf43b79a378534b736a373)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/d3807806-844f-4db2-9f27-96b682f677c6_rw_1920.png?h=097a5736de8343b3e8888fed7098817b)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c7771051-e083-49c5-9d2c-9be15282e2be_rw_1920.jpg?h=2b66a03c3a68a61915236af951cdbfab)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/b6460adf-fe69-4240-8a87-7f7dc13f39fd_rw_1920.jpg?h=27d5d5e658cf992032a8b78d026de292)

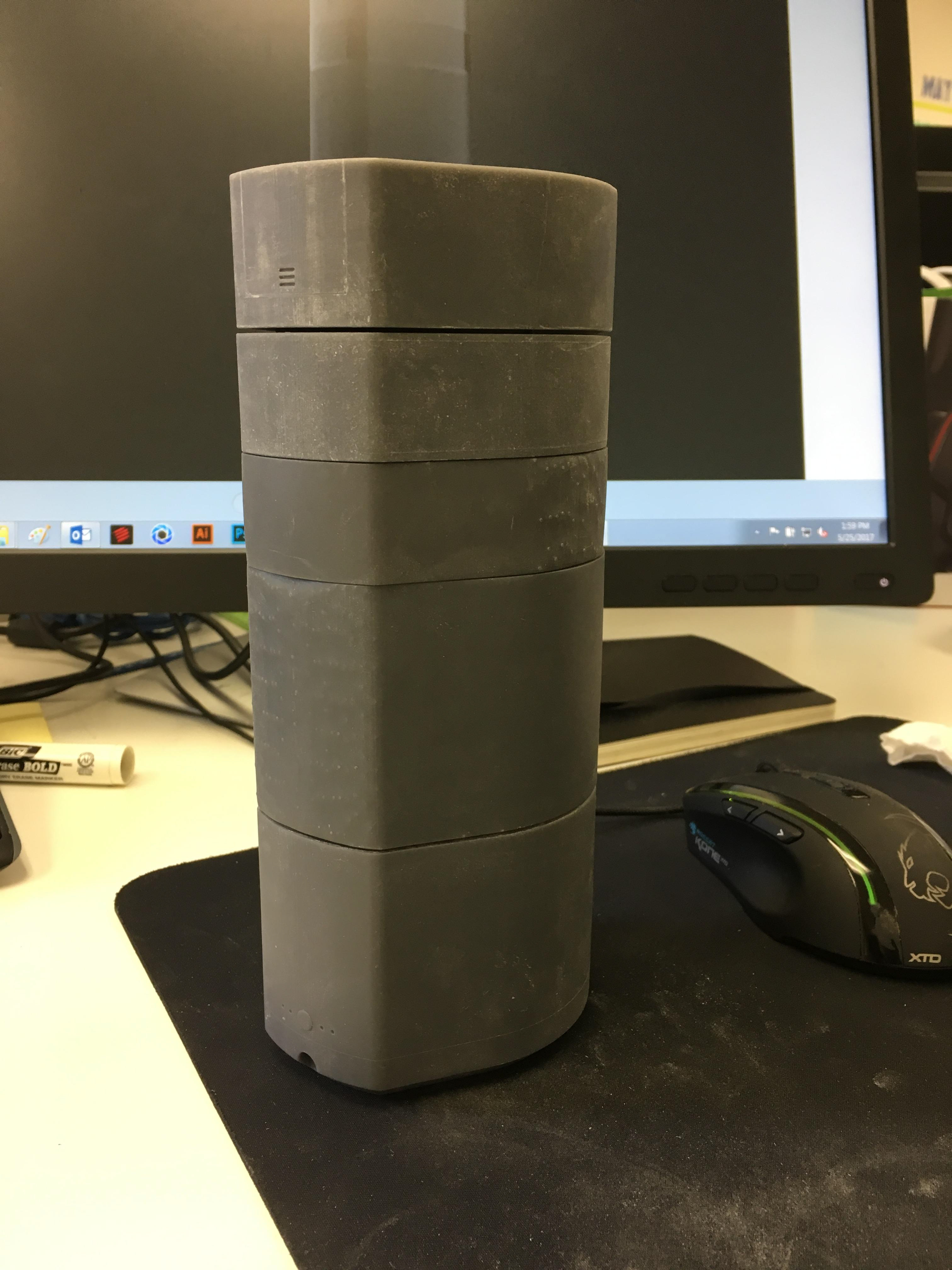

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/381c25aa-2dde-4430-85d0-f2fea9d9e5c8_rw_3840.jpg?h=e984af25c6e2b6fe1ca9486158d62a7e)

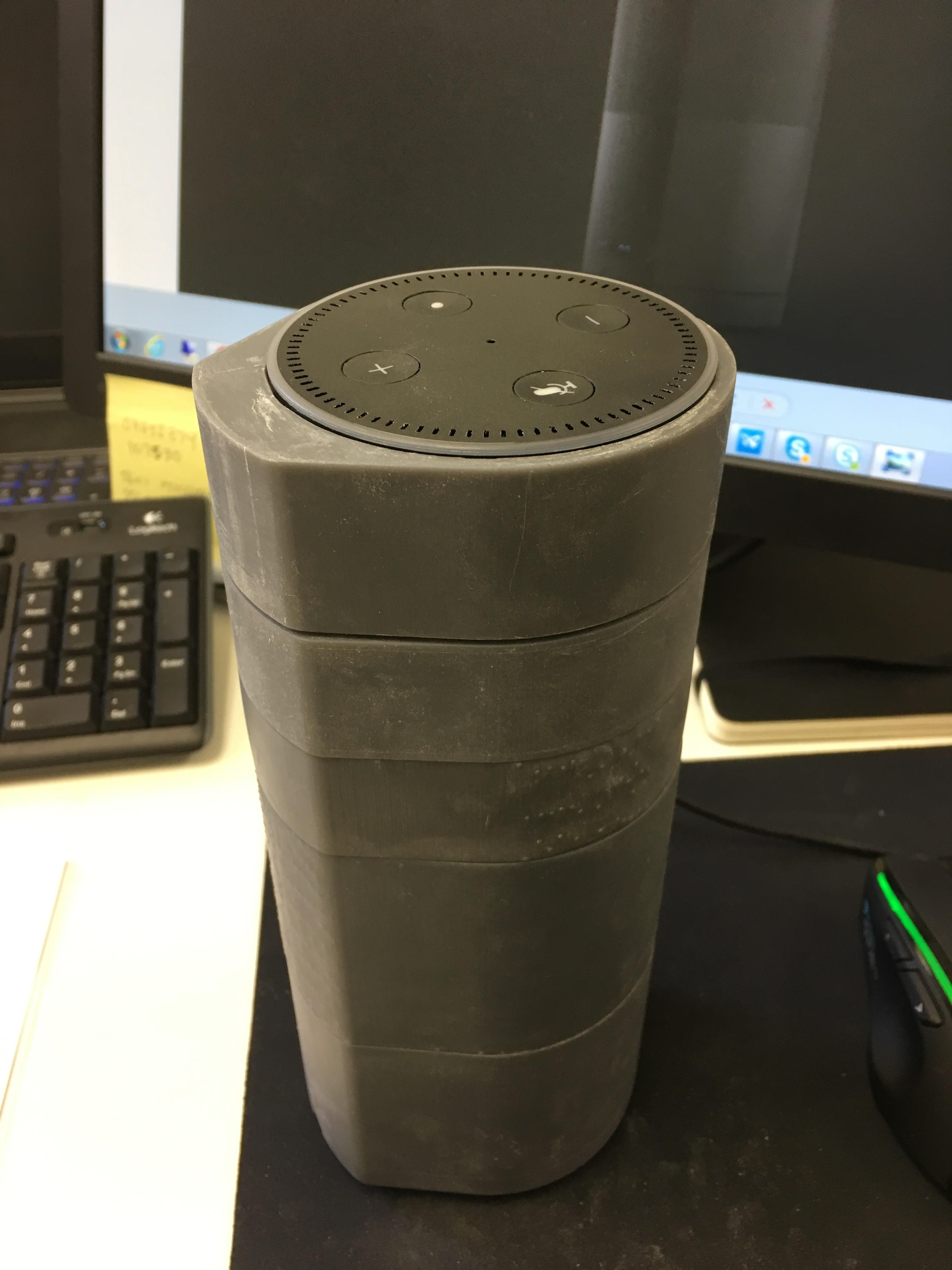

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/6174893f-d48b-420a-afad-bd0f8438a5a7_rw_3840.jpg?h=a93727ac38c9a38aff31297e3bc924fc)

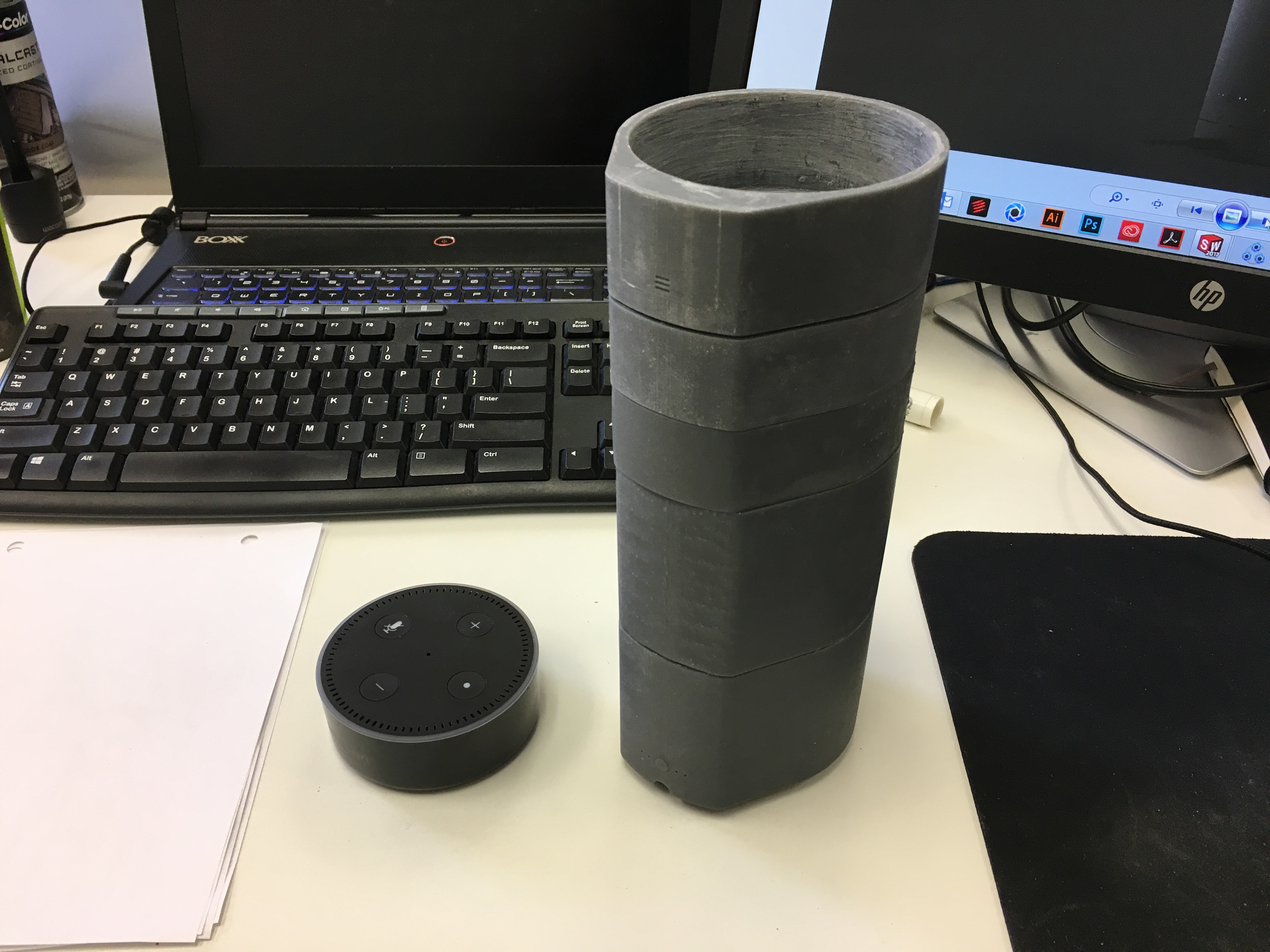

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/e212b1d4-fde3-40d2-a4b9-944a78cabff8_rw_3840.jpg?h=49e0660e4cbb4f93d703983e394c295d)

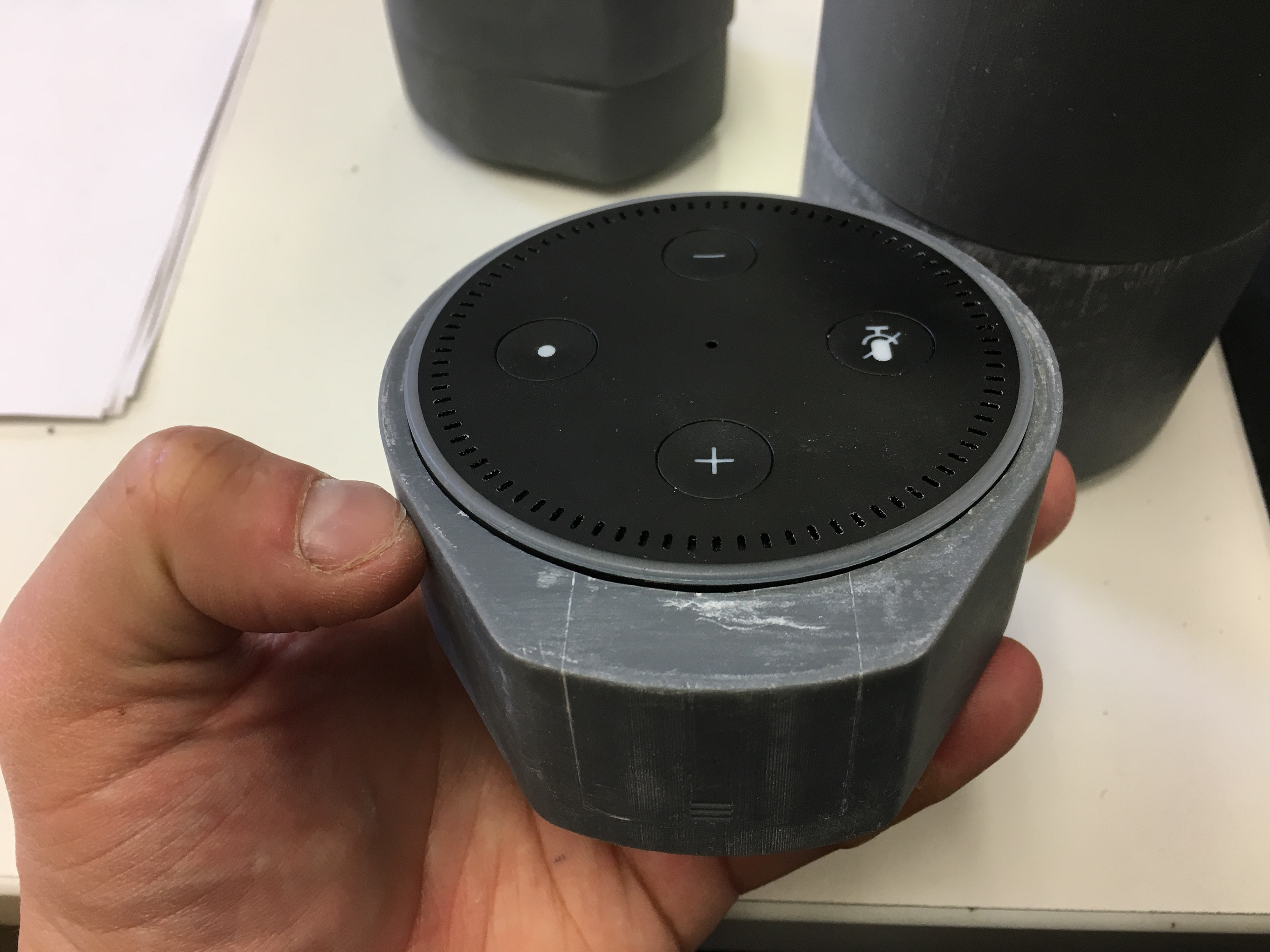

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/f9d24406-b56b-4613-bf8a-46677dfddaef_rw_3840.jpg?h=0b7c6a8604e88b8009240cd6b8436bfa)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/30084d89-54ba-4af6-b333-922bc8b285fe_rw_3840.jpg?h=ea7c294b6087ac6f9cf8c52988060b3a)

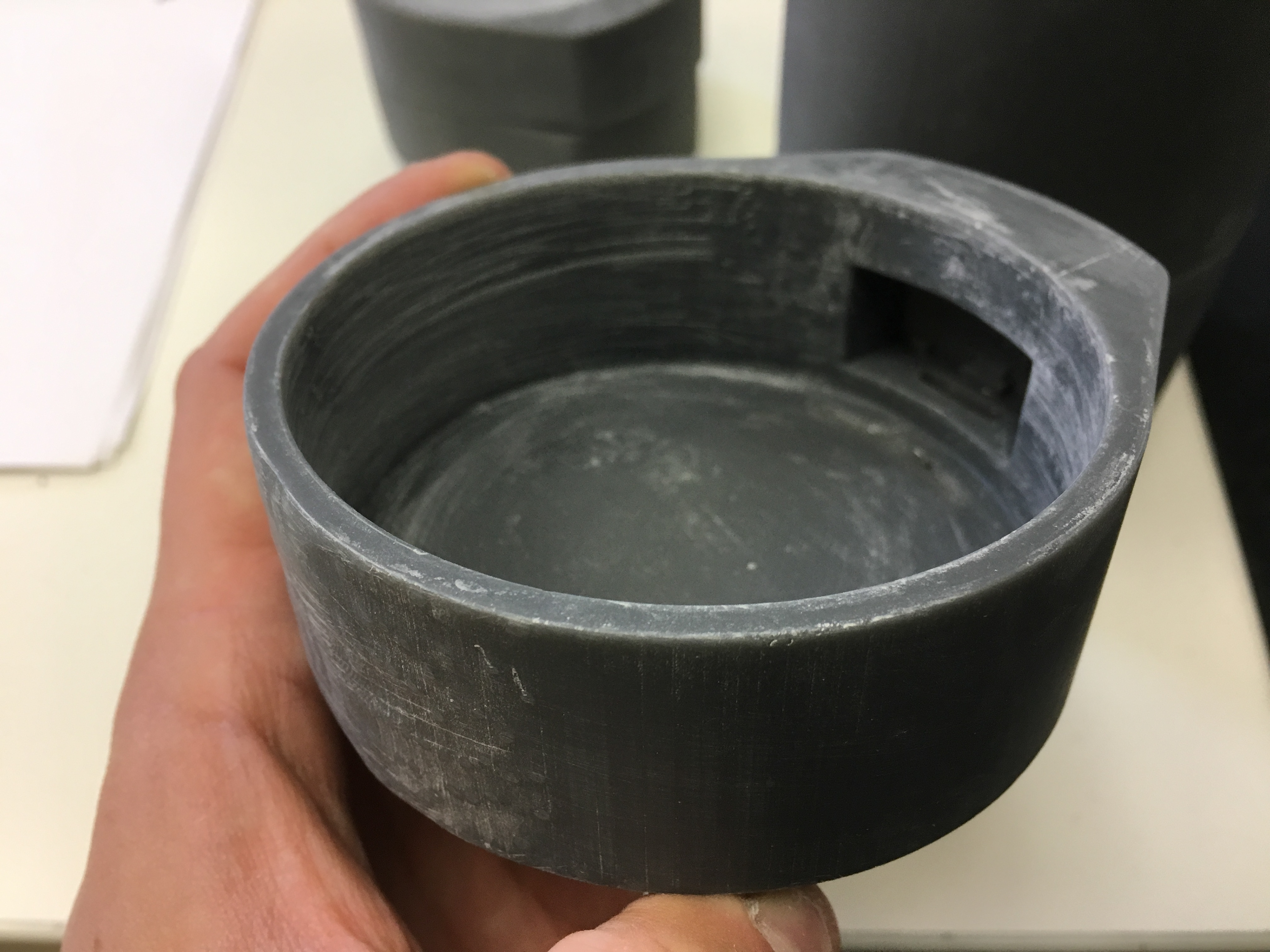

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/58058d02-322c-4103-aacf-627e3e294ccb_rw_3840.jpg?h=5108e3df2e73c4dfcafd649ed36d9c79)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/77e29130-51ae-42ef-9118-82f624eaff30_rw_3840.jpg?h=bb572f82eeb9c02d625bd4e959ce56be)

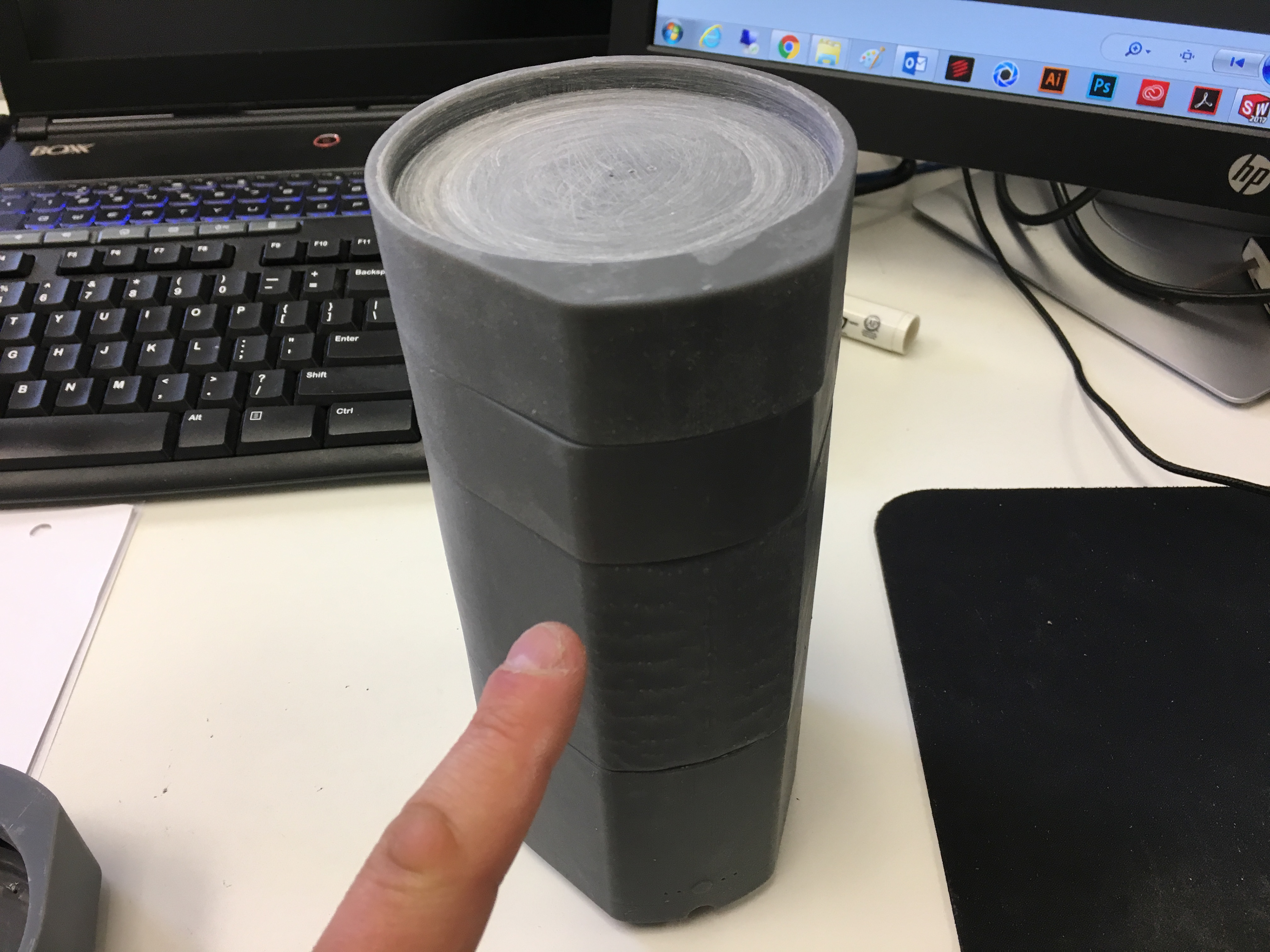

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/a4ec9dbd-35db-409e-8346-942f4579e707_rw_3840.jpg?h=60cf6b6c076fe5333b8b65fcc8cb1f83)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/0abb030f-d558-425c-9537-fdccf5e5e268_rw_3840.jpg?h=b32812a188b77ff666397cf10c7ef1cc)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/8e6faf75-5176-4010-b59e-7fd39990c0bb_rw_3840.jpg?h=4d8622be933bc67f7a20485ebdcb8319)

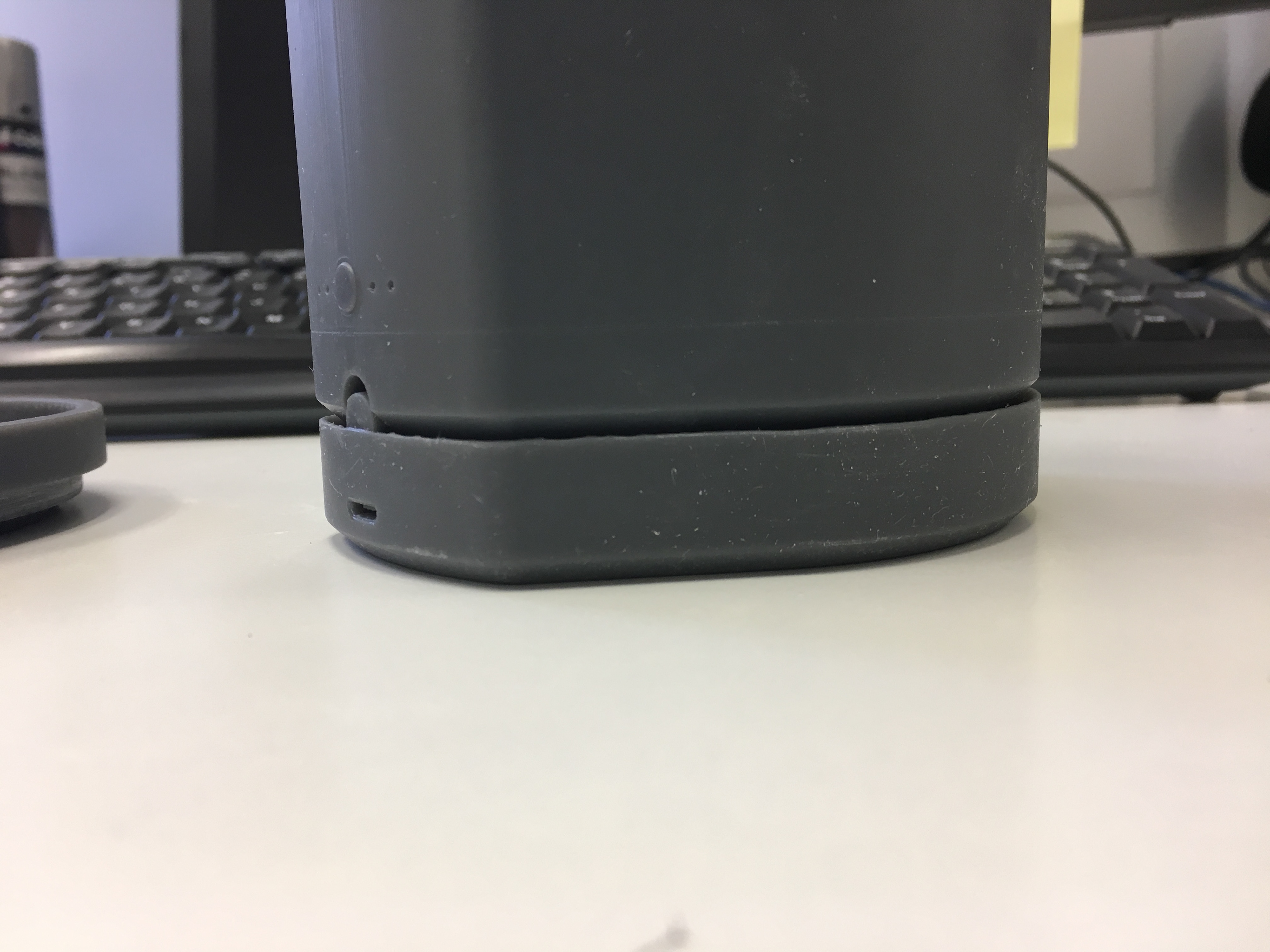

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/5c86b981-1a20-447e-9e68-52f1f1d4744d_rw_3840.jpg?h=087bfd7c40d0821da595edd1fb71cd4c)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/e710df40-fed6-460c-bfd8-84012d5e5717_rw_3840.jpg?h=d82b56d97aa61872f66517f5b508faed)

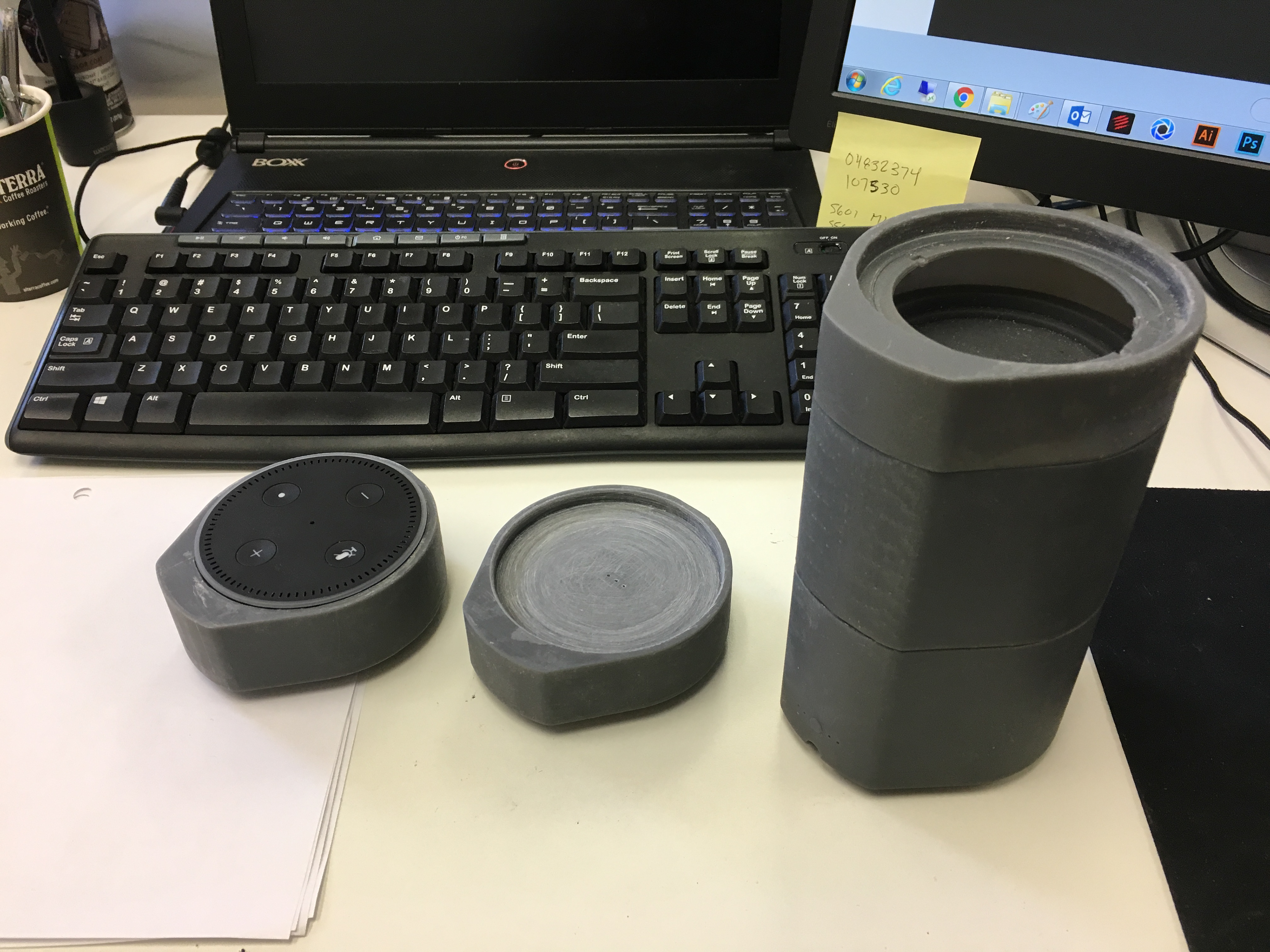

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c50d0cbd-c653-40c6-a20c-94b8472e7bb5_rw_3840.jpg?h=0e922d777d2fb8b641c156327229e43c)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/f3705d81-6fcf-4d88-8369-3dc1b34bd52d_rw_3840.jpg?h=953c3c63ec81088675f57e0ae562759d)

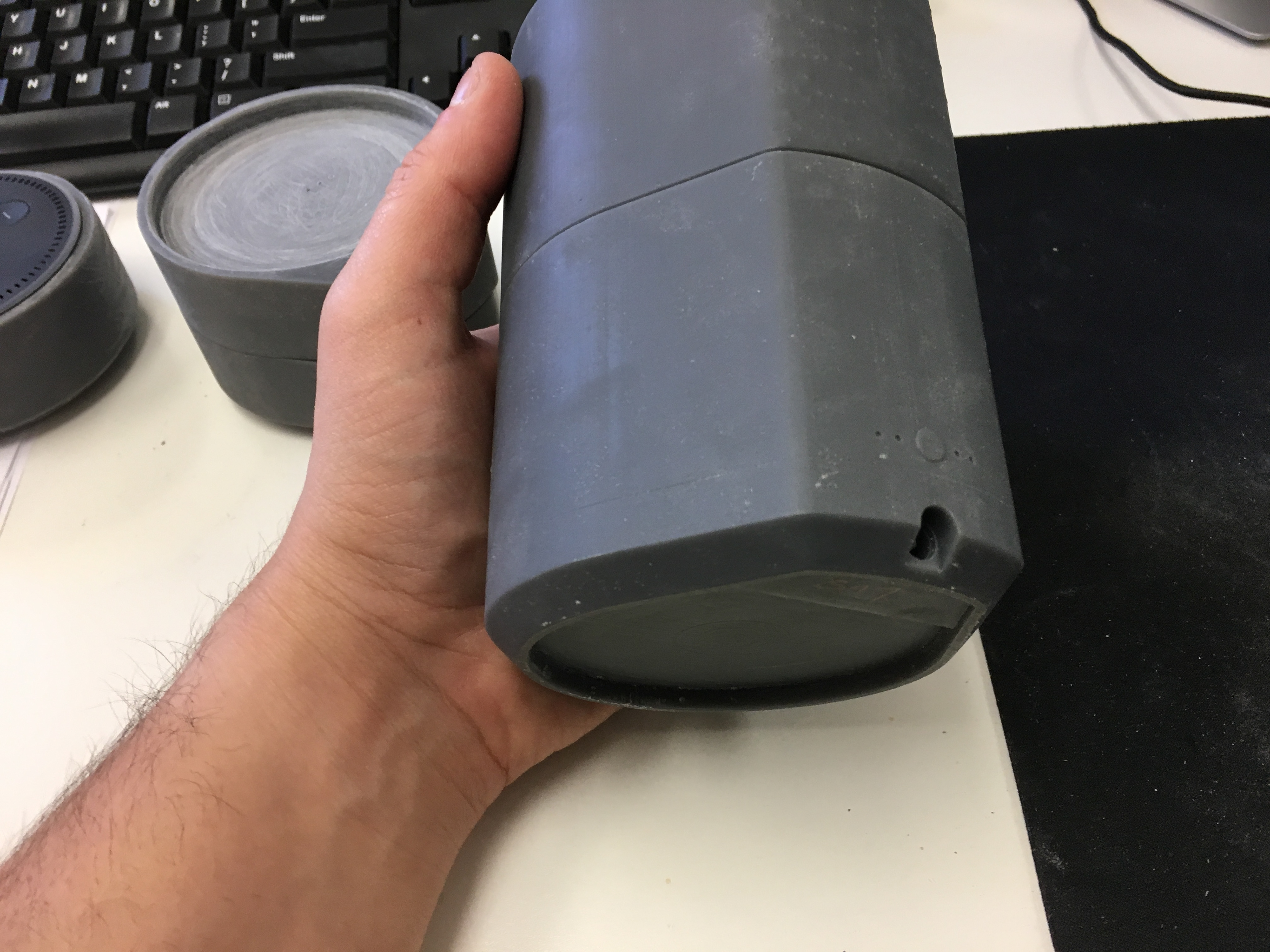

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c0516f8c-216f-4188-96fe-c41f9736f2cb_rw_3840.jpg?h=e6d220671fb9a56d7f9a322575a5fd88)

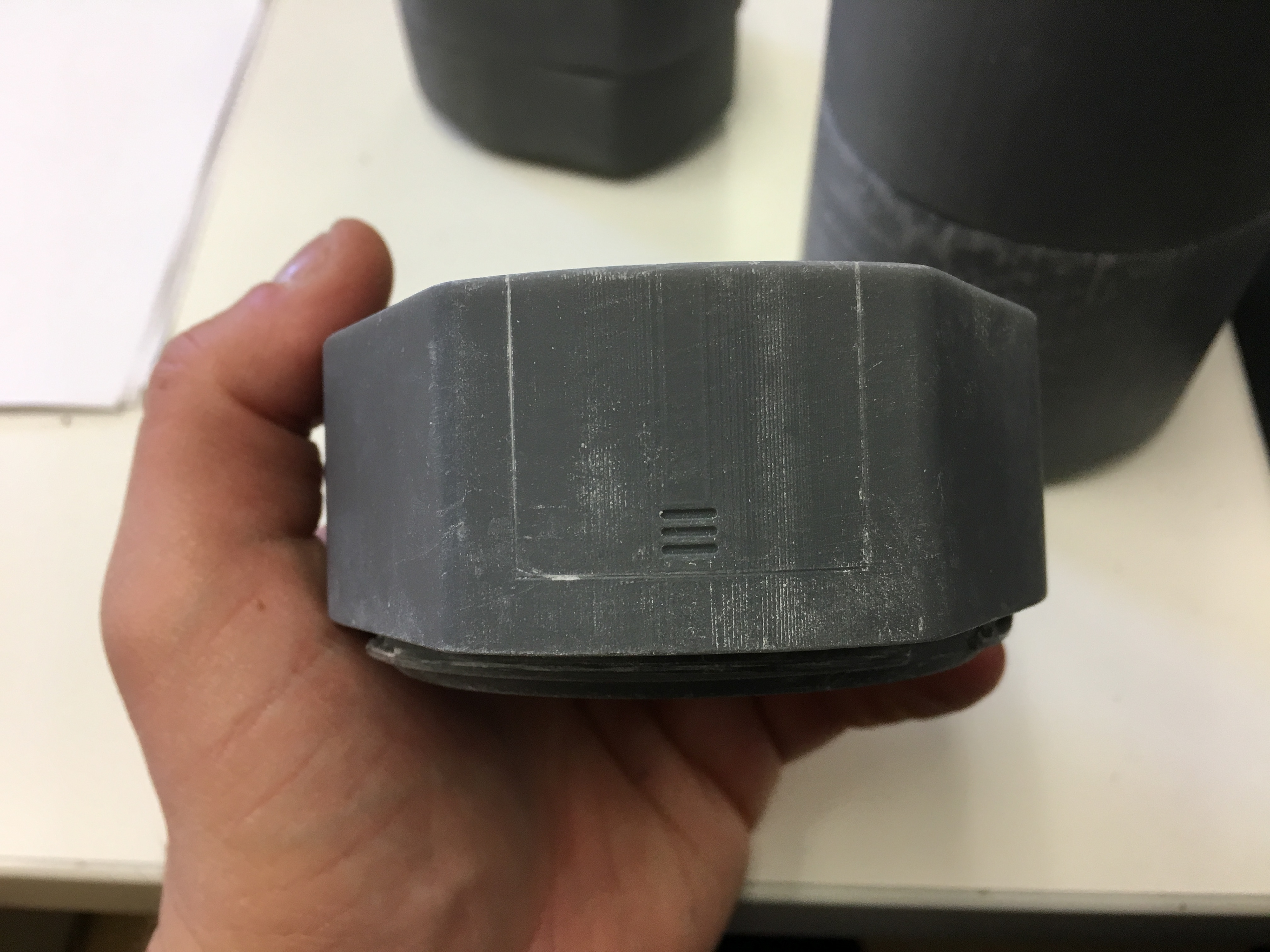

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/622840ff-85e0-43f5-858d-0ad6f134421b_rw_3840.jpg?h=028cea5626a14a63cccf85eae031a49c)

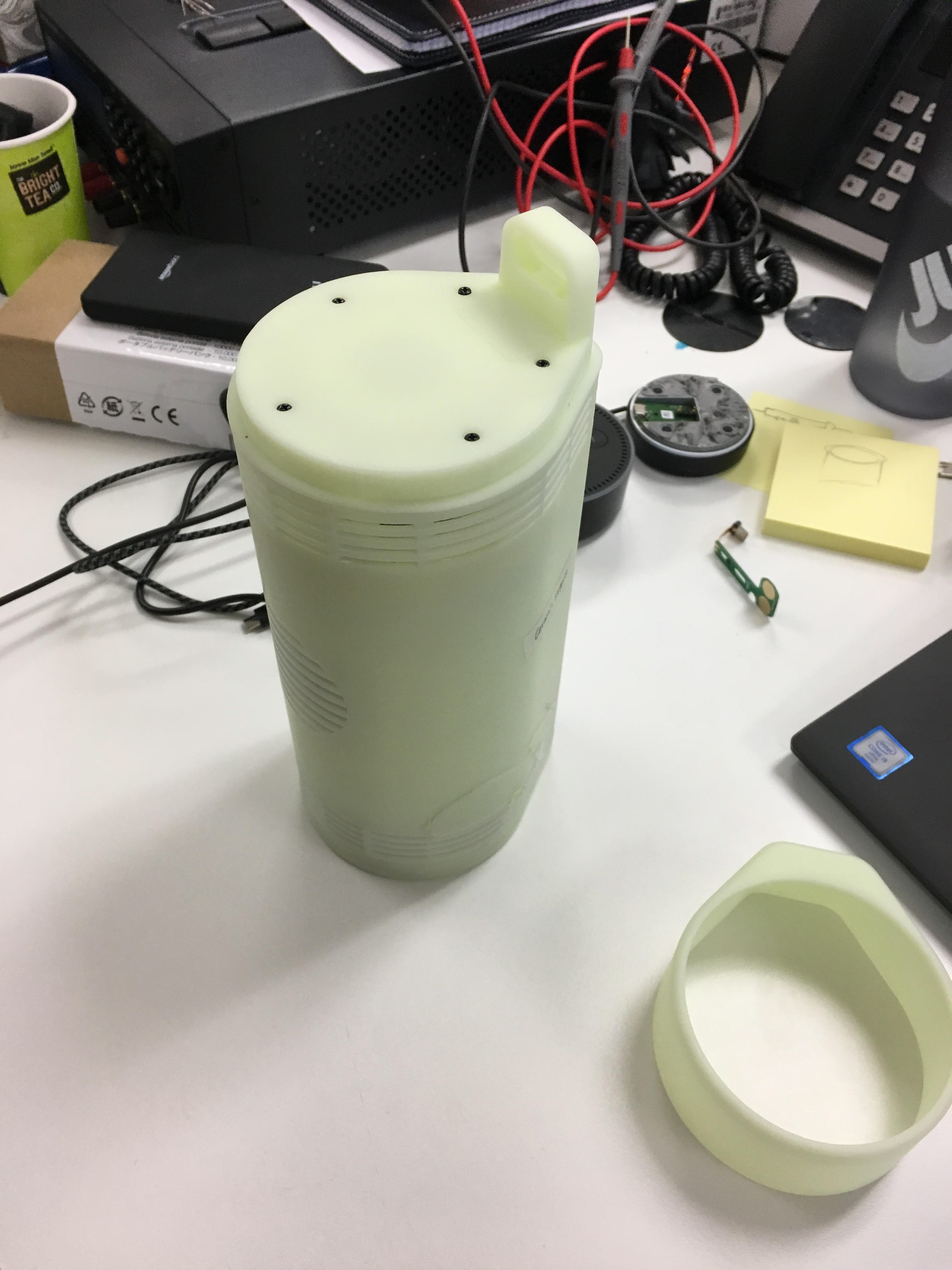

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/1ffd4ea6-83ef-46b9-8a42-e90292cbb61a_rw_3840.jpg?h=0880a525b1010da457c753a00e40e060)

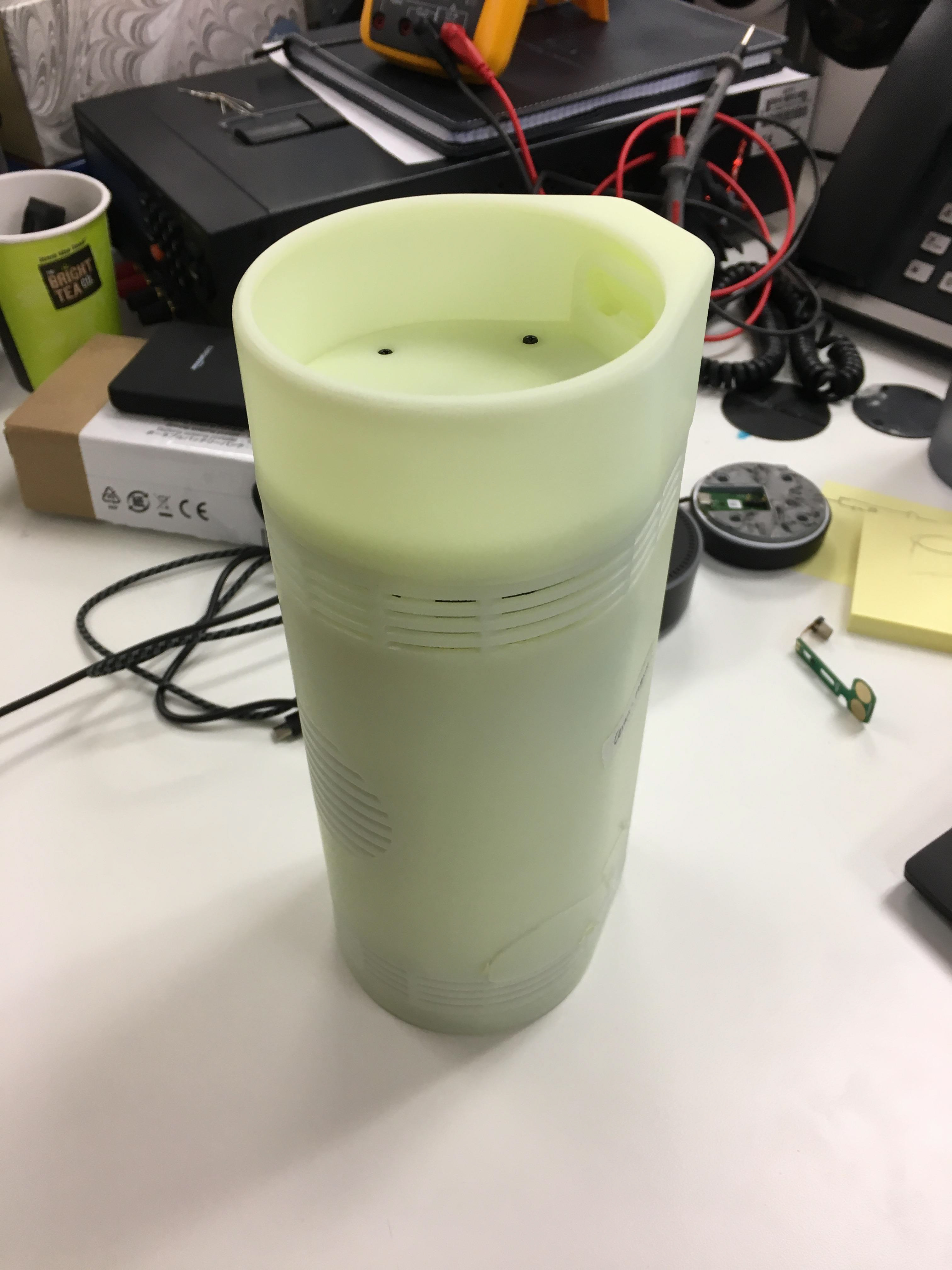

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/e6eb5d2a-6f8d-4c4a-979c-391085df787b_rw_3840.jpg?h=93e550896a22a44137dd9dadda8ab649)

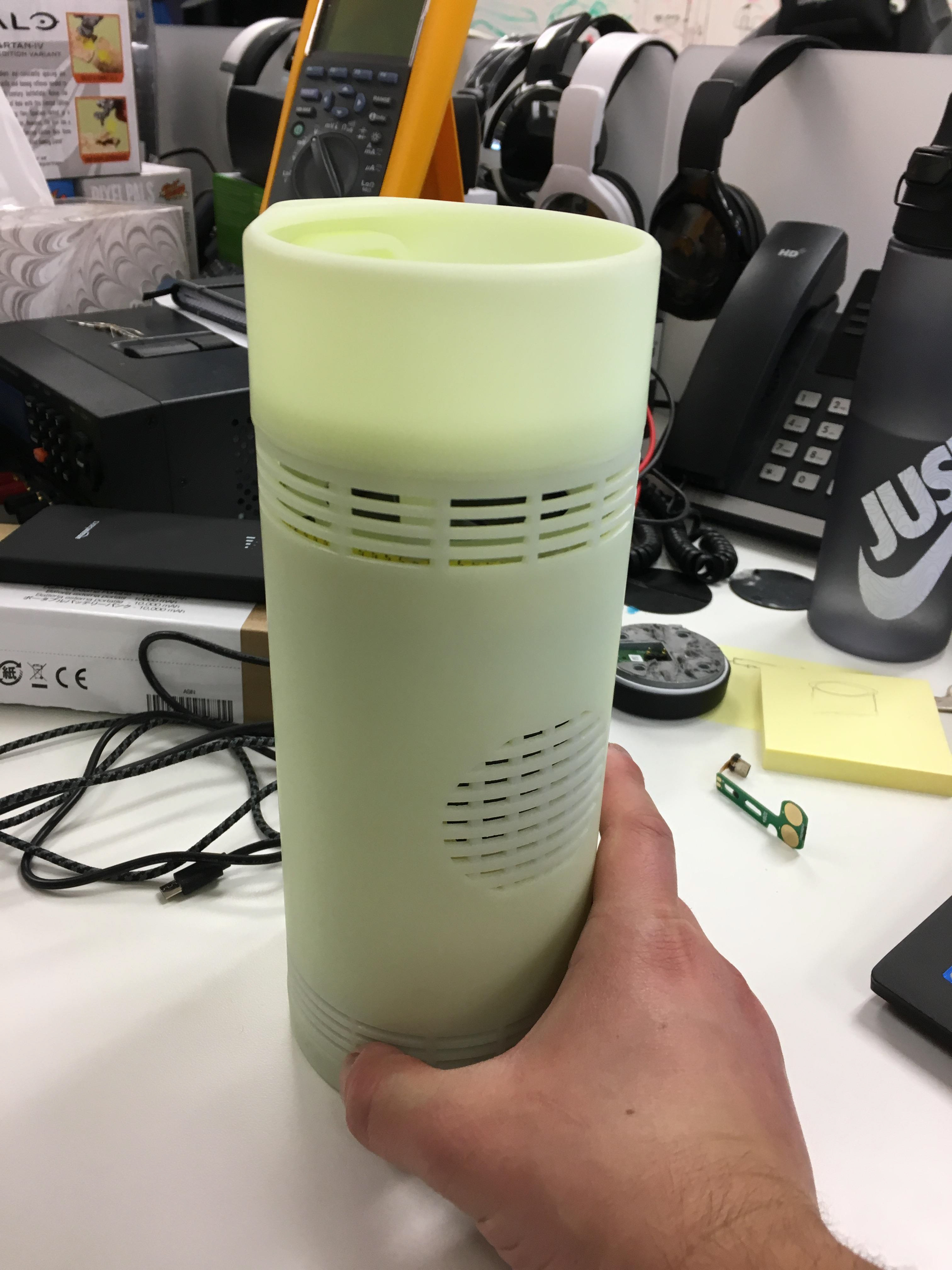

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/7c4cf8b8-cca0-407e-b65f-98282e74132e_rw_3840.jpg?h=1167f8e21f776063270c4f39e0fed519)

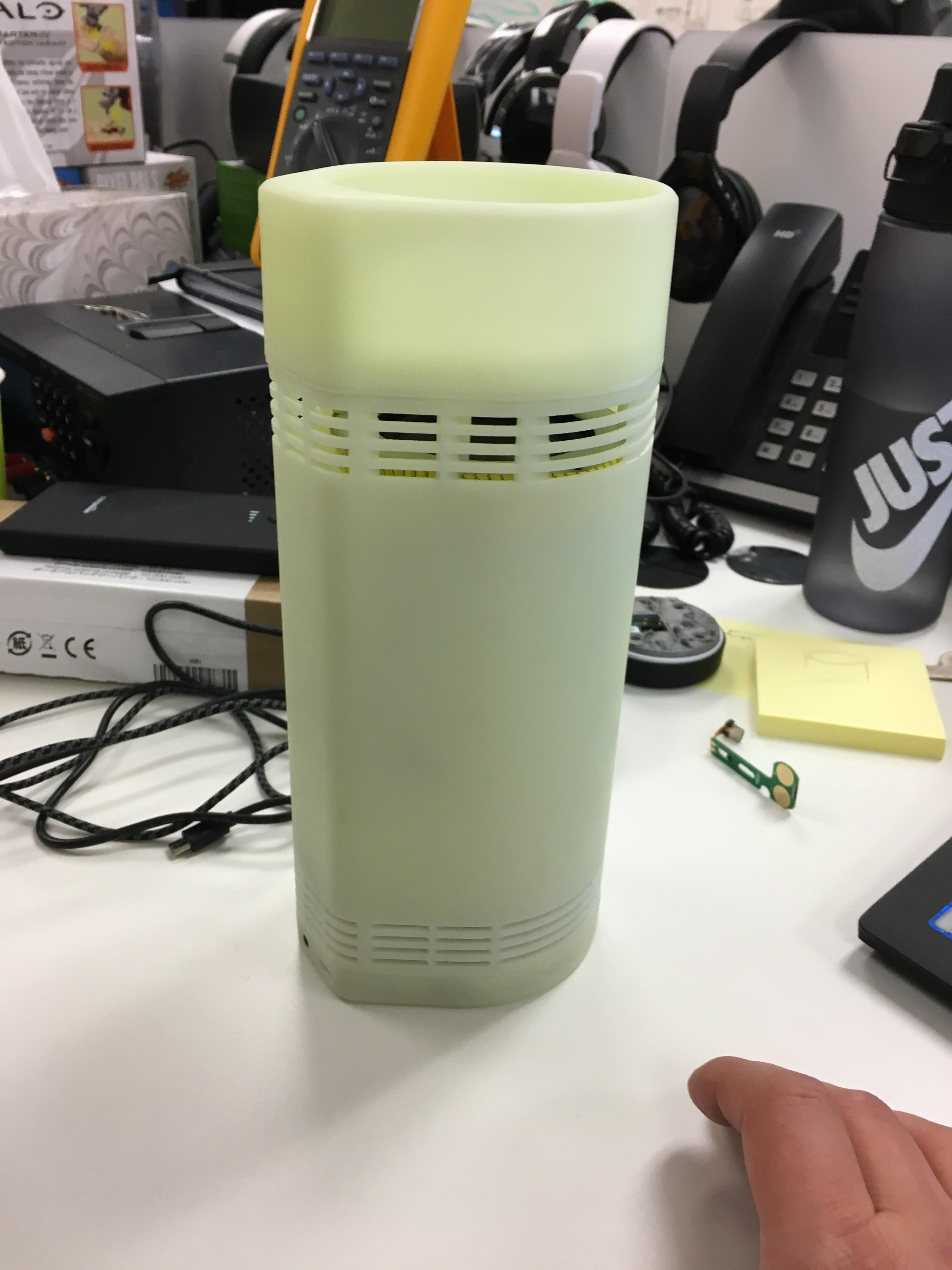

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/135ead89-a062-43f9-994b-eca1fabc8a1c_rw_3840.jpg?h=d1f06489c7b90674a83dc7f3a778cdff)

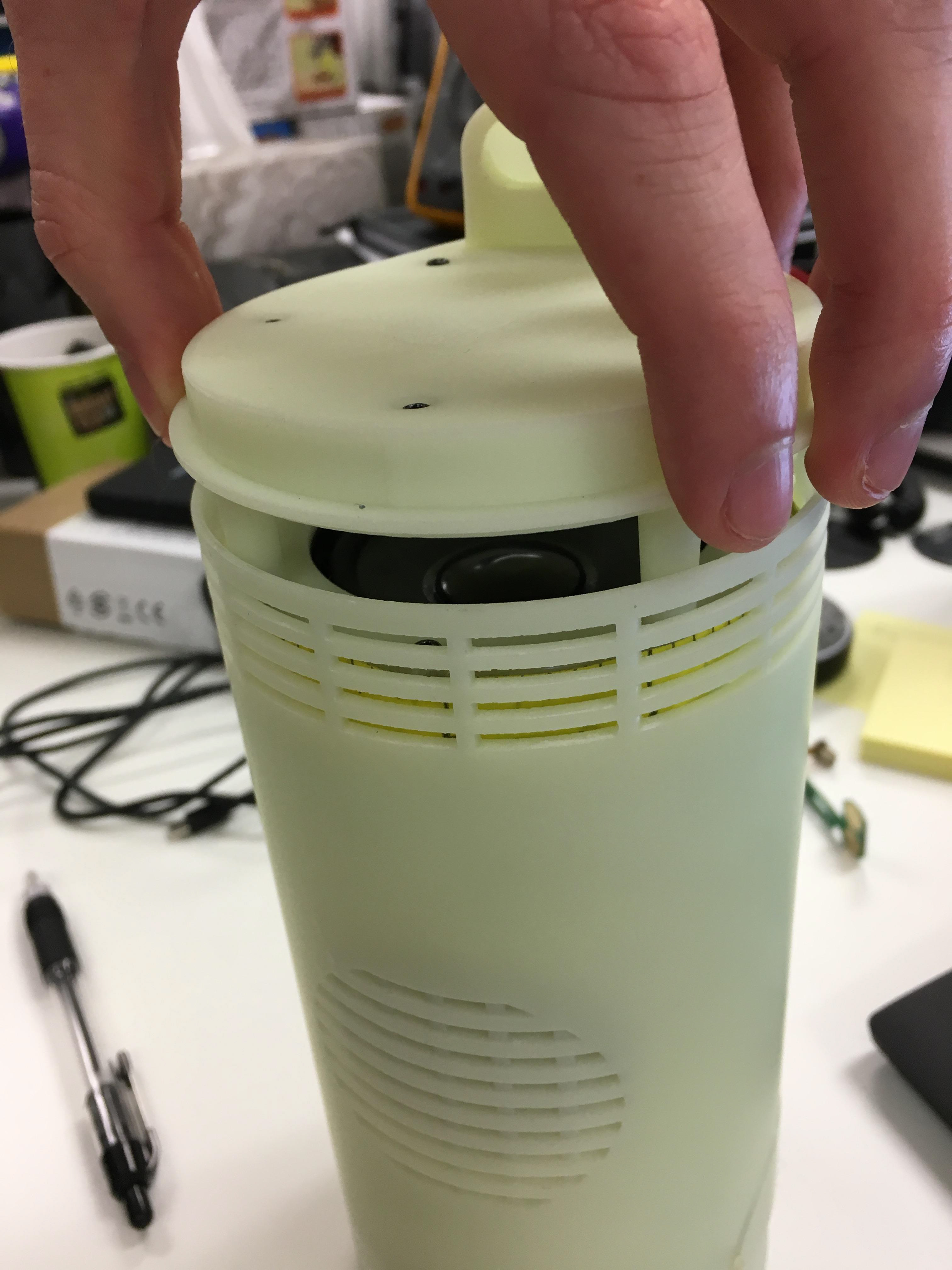

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/b2a6ad90-e8a7-448a-b227-d98d504d442a_rw_3840.jpg?h=973f987510ed983eee06c1072457759b)

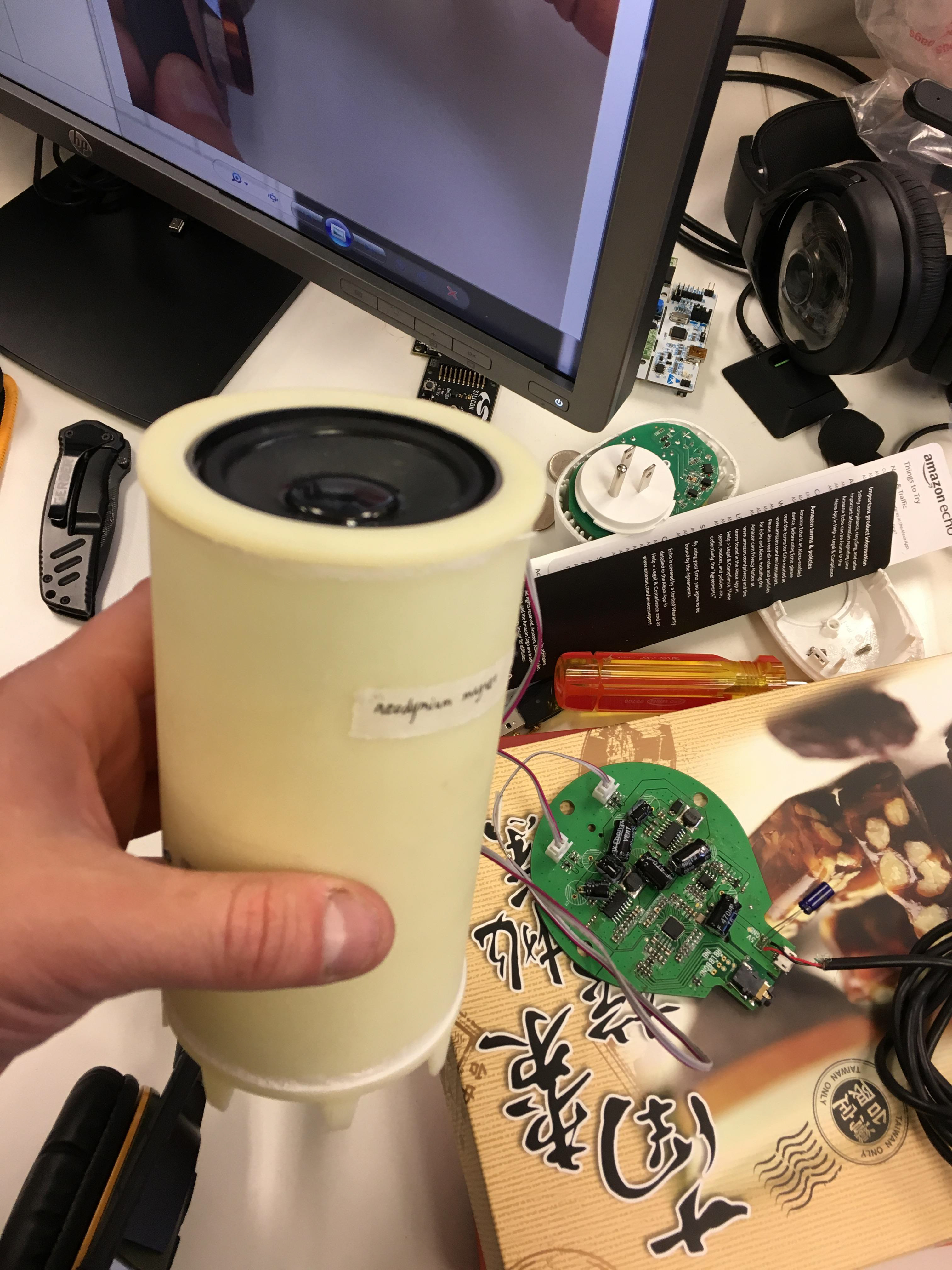

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/9dae8264-c5b7-41a8-bd35-b5d7a865d1b7_rw_3840.jpg?h=e2ffa45e871a185af8dc68b4c02890e7)

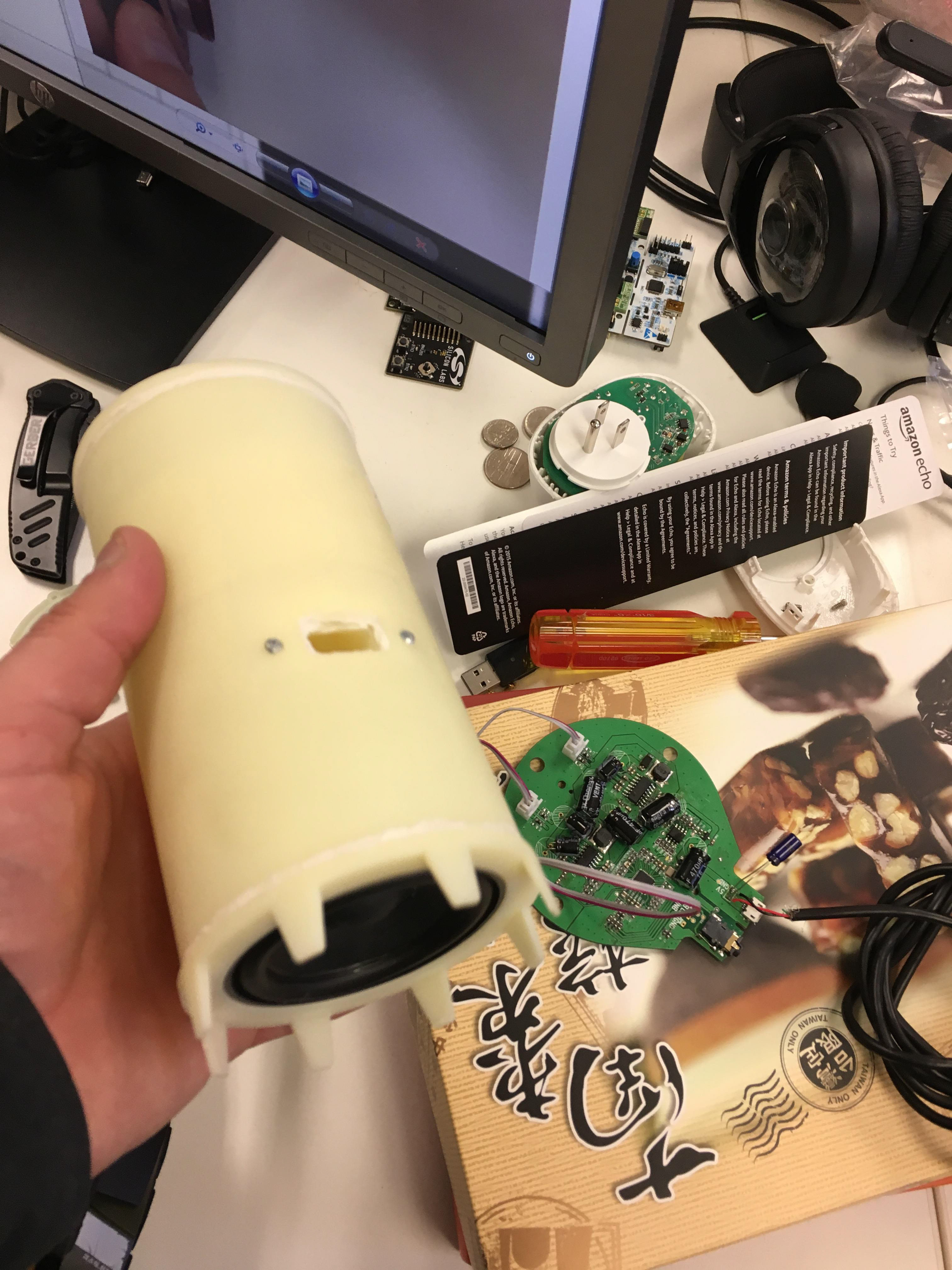

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/0fa42846-2710-44e5-b16a-c046c6117d6b_rw_3840.jpg?h=1aa9c1e70bb9b00957174153132157de)

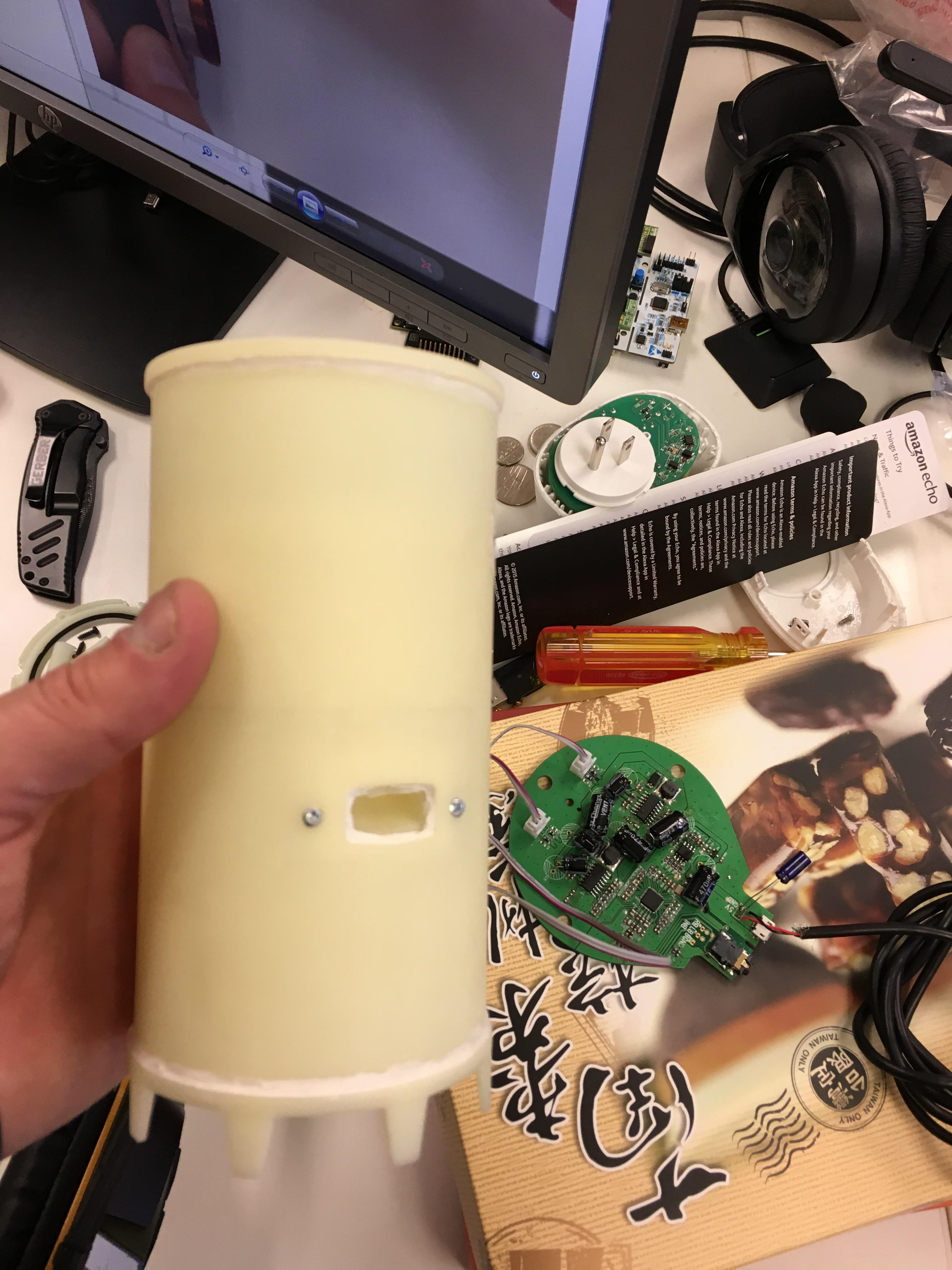

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/b32e220b-0191-405f-bef1-005a0726fe35_rw_3840.jpg?h=ffce31ba0b833b332c34f1997c0da512)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c97002f9-990d-43b4-abc5-3a1eafad9fff_rw_3840.jpg?h=a223e666e1be4c71169696d96cd8985a)

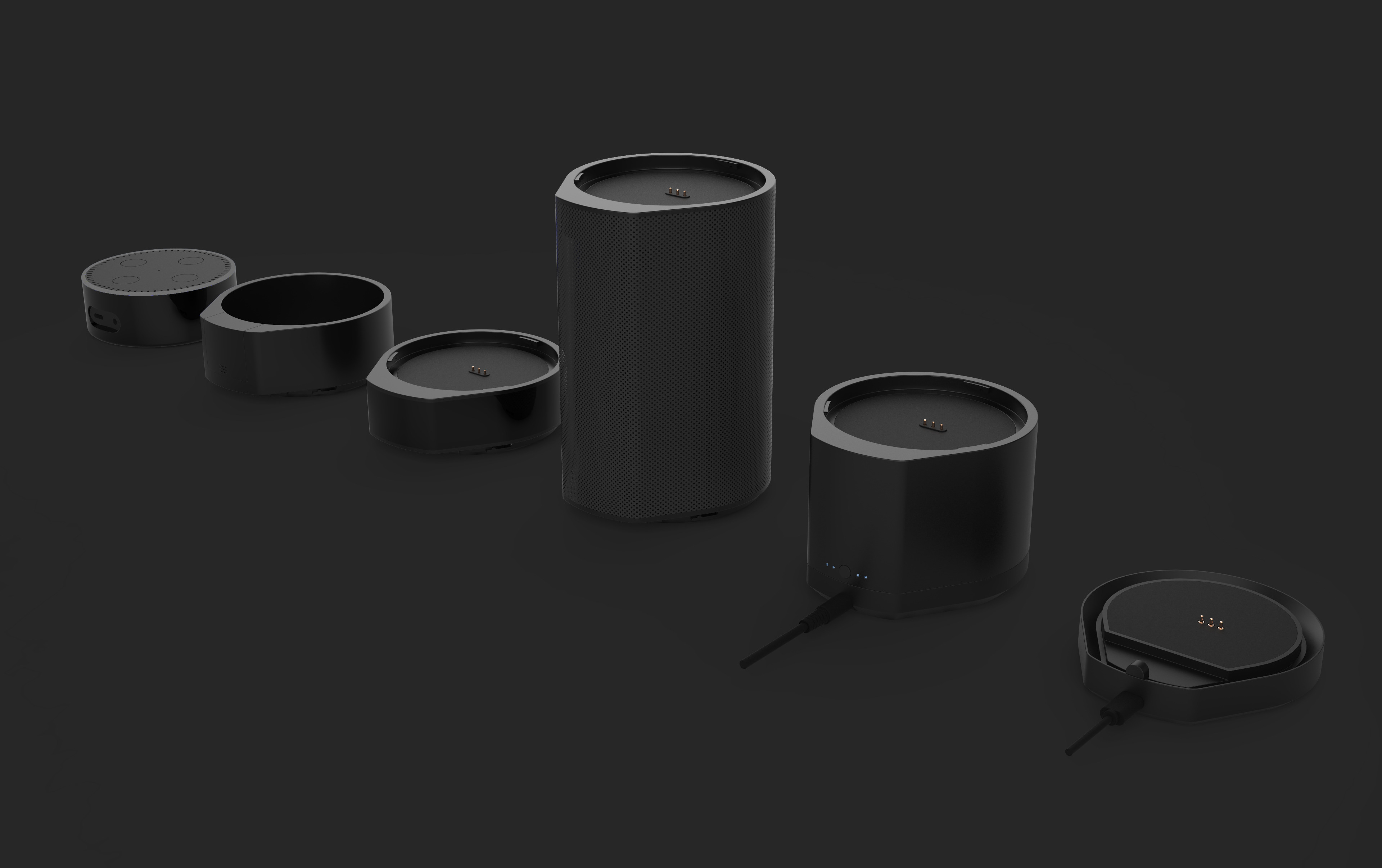

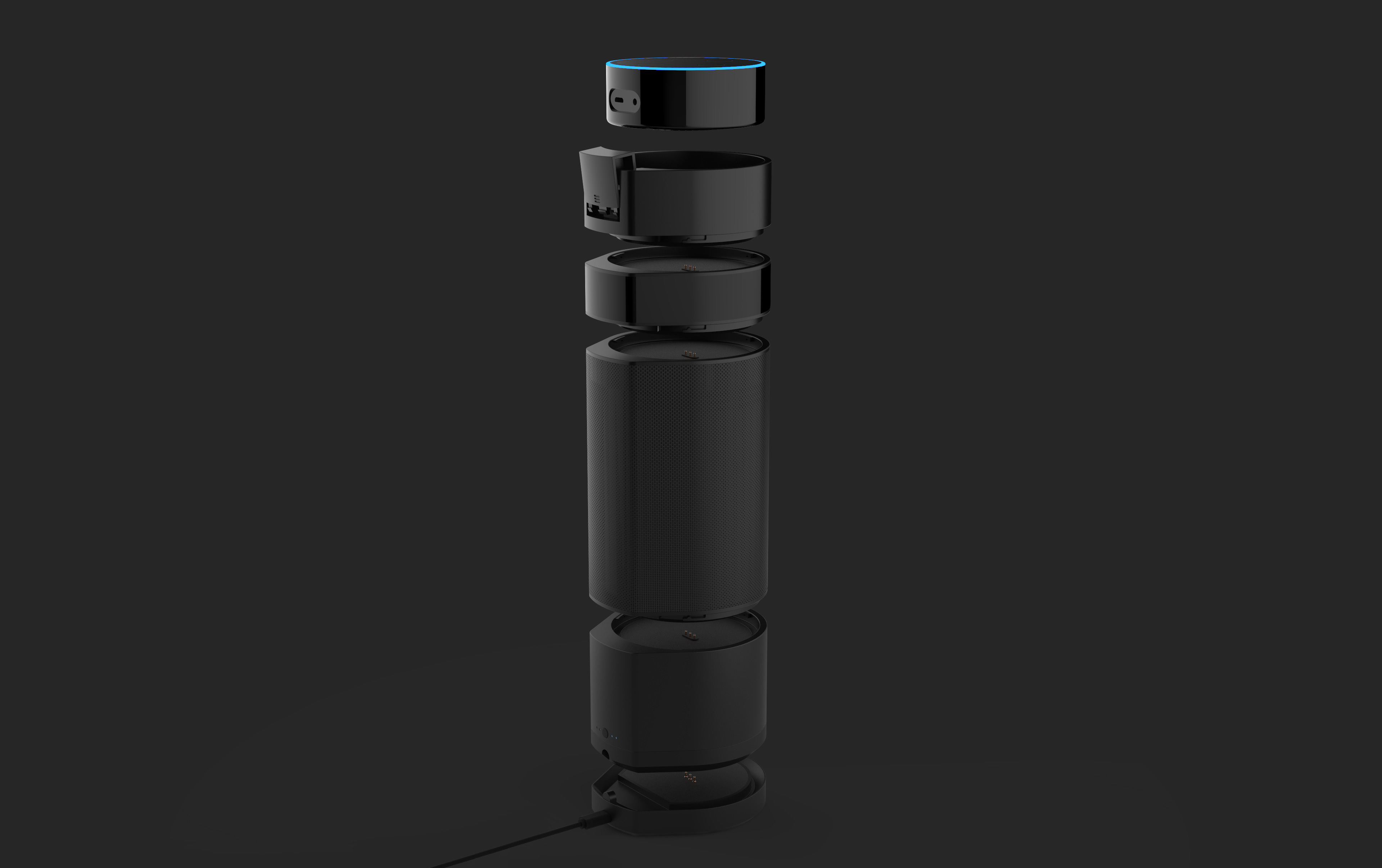

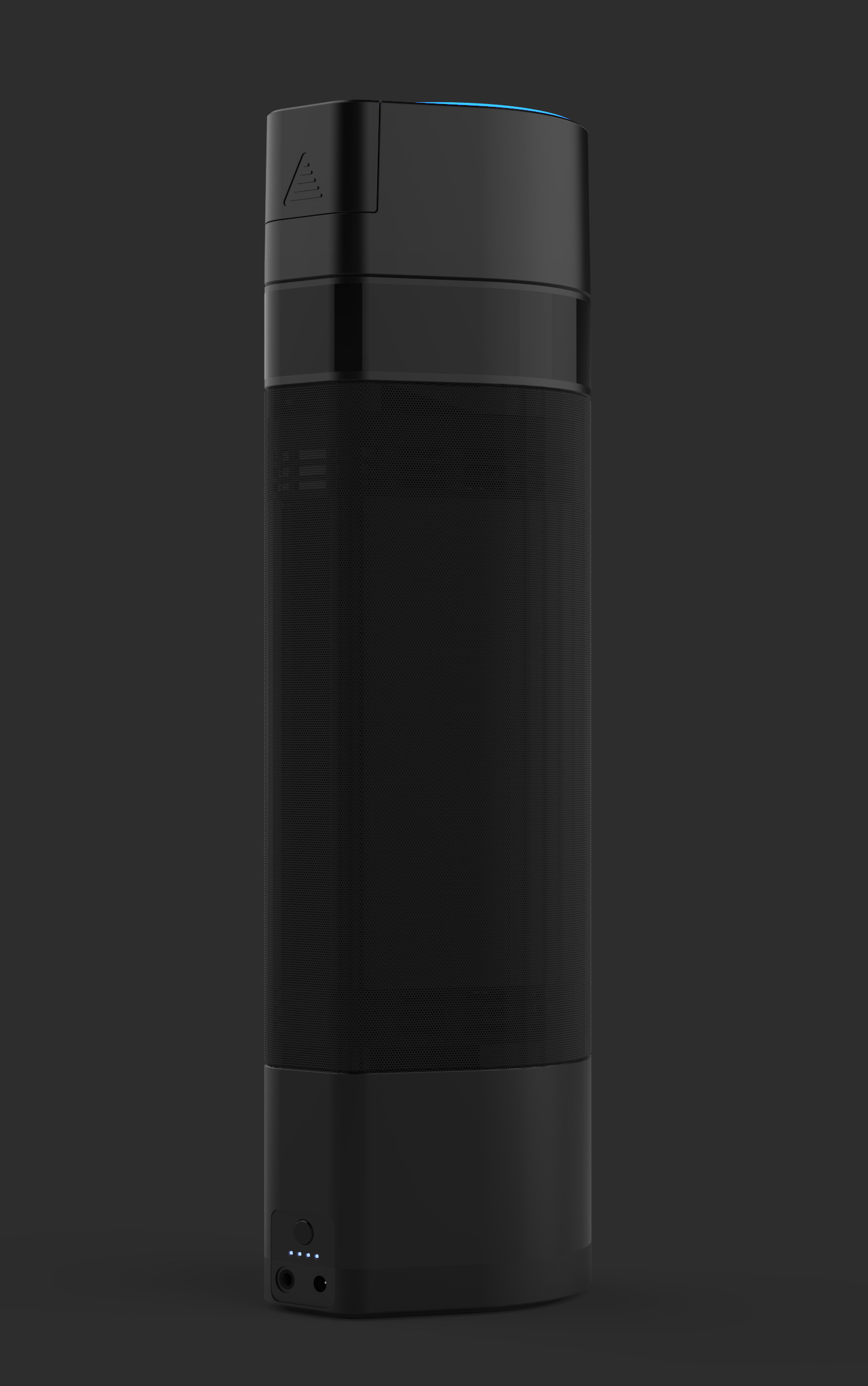

Pod Design Concept renderings
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/c4881245-fd2b-4db9-86b0-11708dd322e3_rw_3840.jpg?h=c3b9b9572d20faff6f7cb19ee6af1a66)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/b8907f13-431b-4a69-abbc-8e5d6c1cb5f7_rw_3840.jpg?h=0bc5ad952311ad6e46b91ffb54c5648e)

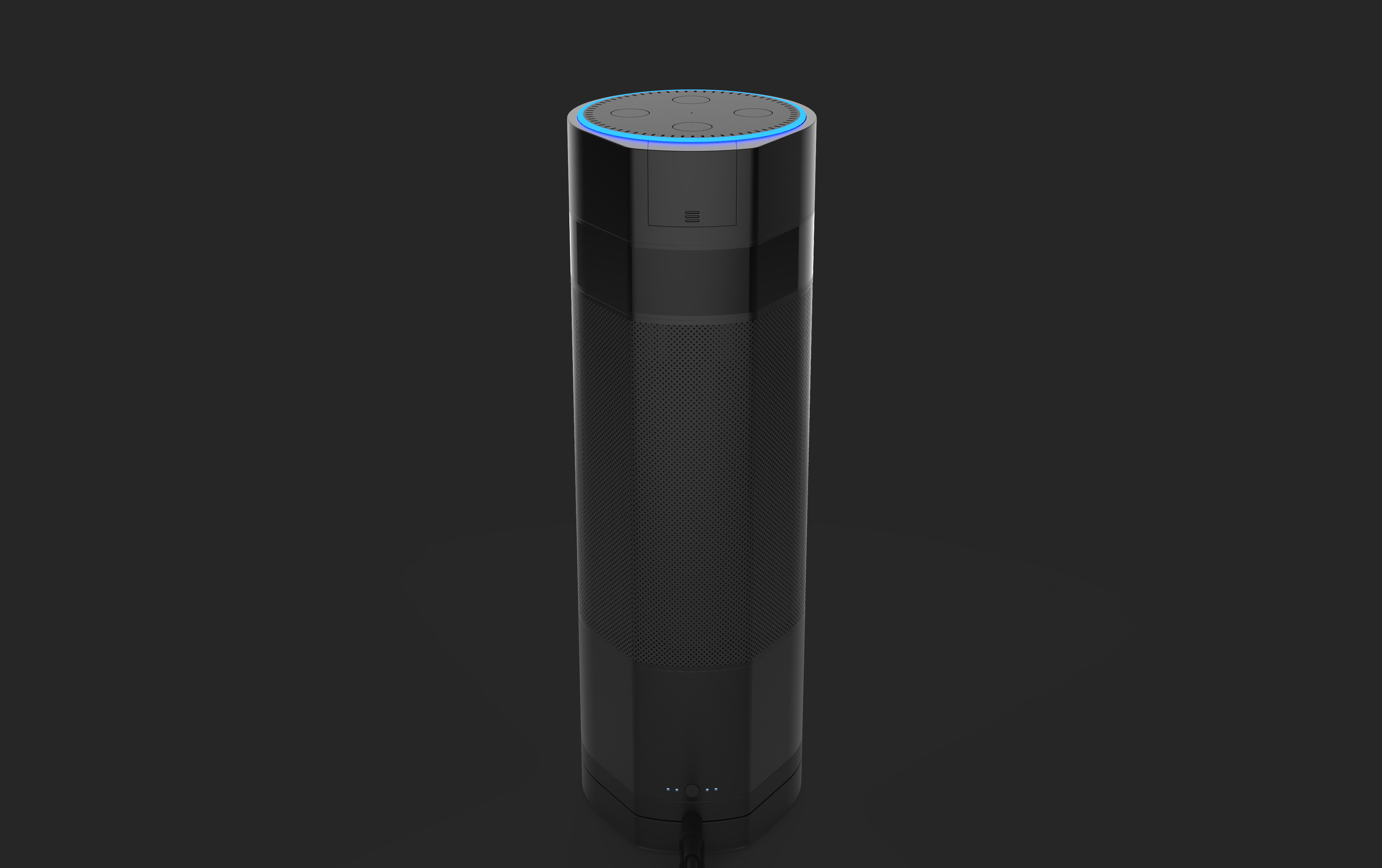

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/7048db6e-34a9-4f1a-a741-4752807c8ede_rw_3840.jpg?h=7dee95532edab56c88096de307fc0c87)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/e3047660-b75f-47d7-b15b-83a609b0d713_rw_3840.jpg?h=7e7f17937e96da2ec77e40e967b545de)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/a62c2e53-0804-46b5-90dd-edaaea2a3e98_rw_3840.jpg?h=20bf428576c3a5170e7e2c74a52a23d4)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/b67a5320-e6b8-4fcc-8b62-7c78d8afa5f0_rw_3840.jpg?h=fdd90a3ae76d986a6ecd2bd1dbd4f982)

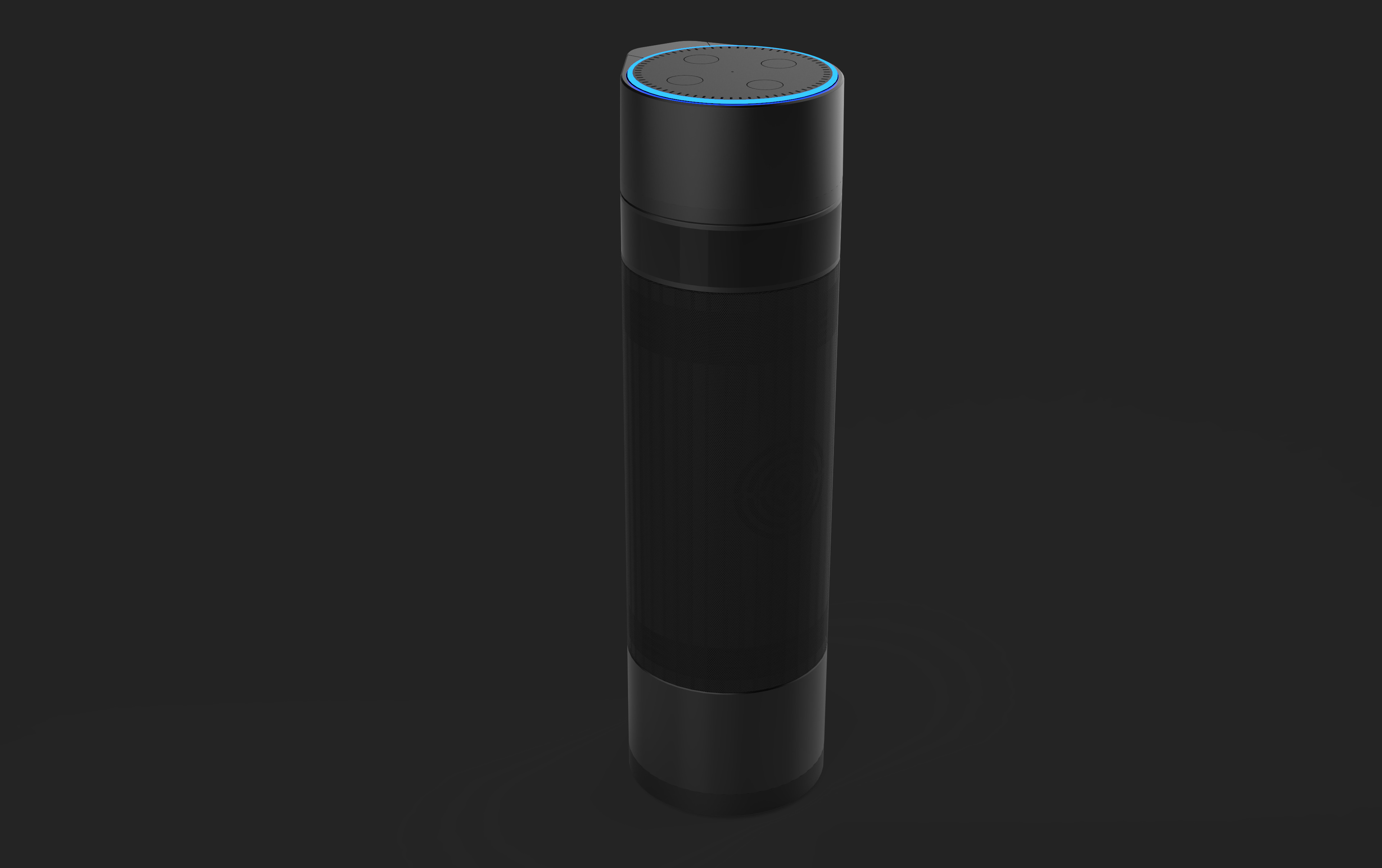

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/54e31892-87e0-4e1f-85ad-64aeccbefd91_rw_3840.jpg?h=1f811ecace3ab21178e10b1479412055)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/e47bab57-d96f-4afe-9f74-3e7fd5d3d869_rw_1920.jpg?h=661cff7d05c92dcf8baf2112229fd3cd)

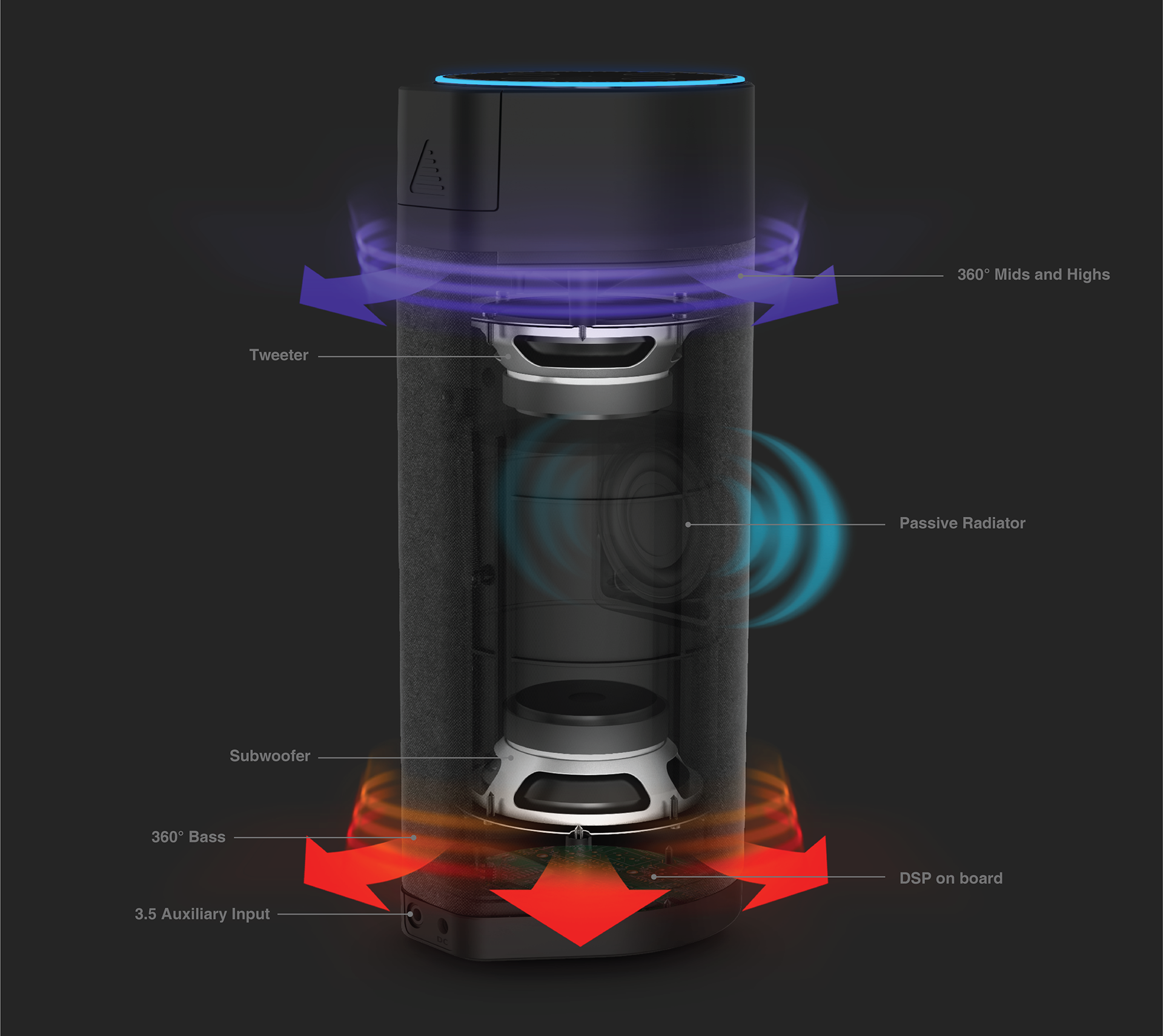

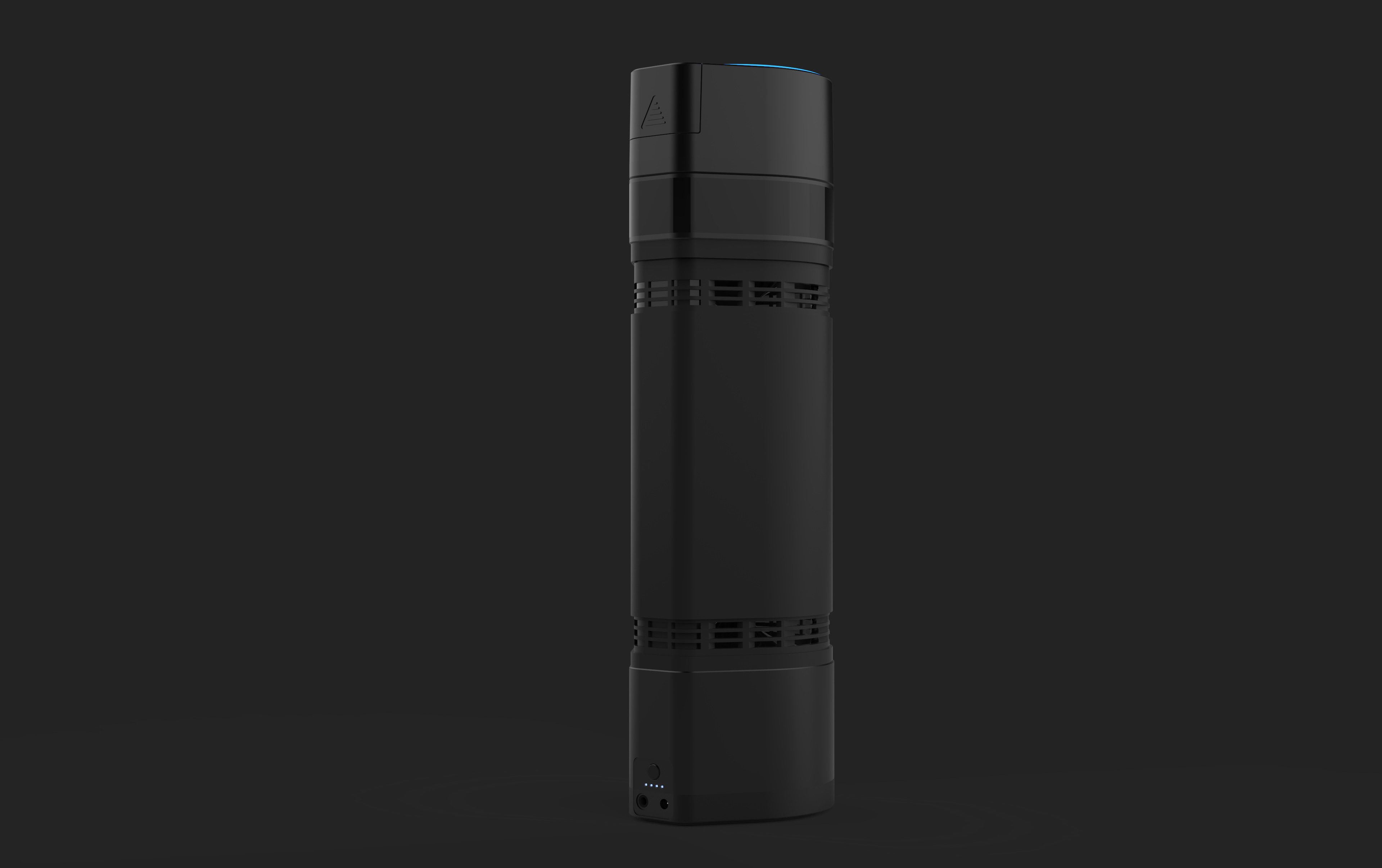

Speaker and Sub Woofer designed into "speaker pod"
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/1c50d81e-b77e-4a2d-a4ab-48cf88a84b7b_rw_3840.jpg?h=ce77e51cac08ad2a30cb03c2af2ec4e2)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/6bc3cf74-fd17-468c-9c03-507bb2f391ee_rw_3840.jpg?h=b8a0423868ce0cd8563e867165dfef7c)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/7eff0d8e-5f1a-40c3-a770-c8bbbcebed62_rw_3840.jpg?h=069f694fe74cea87e0fd8ae52564e559)

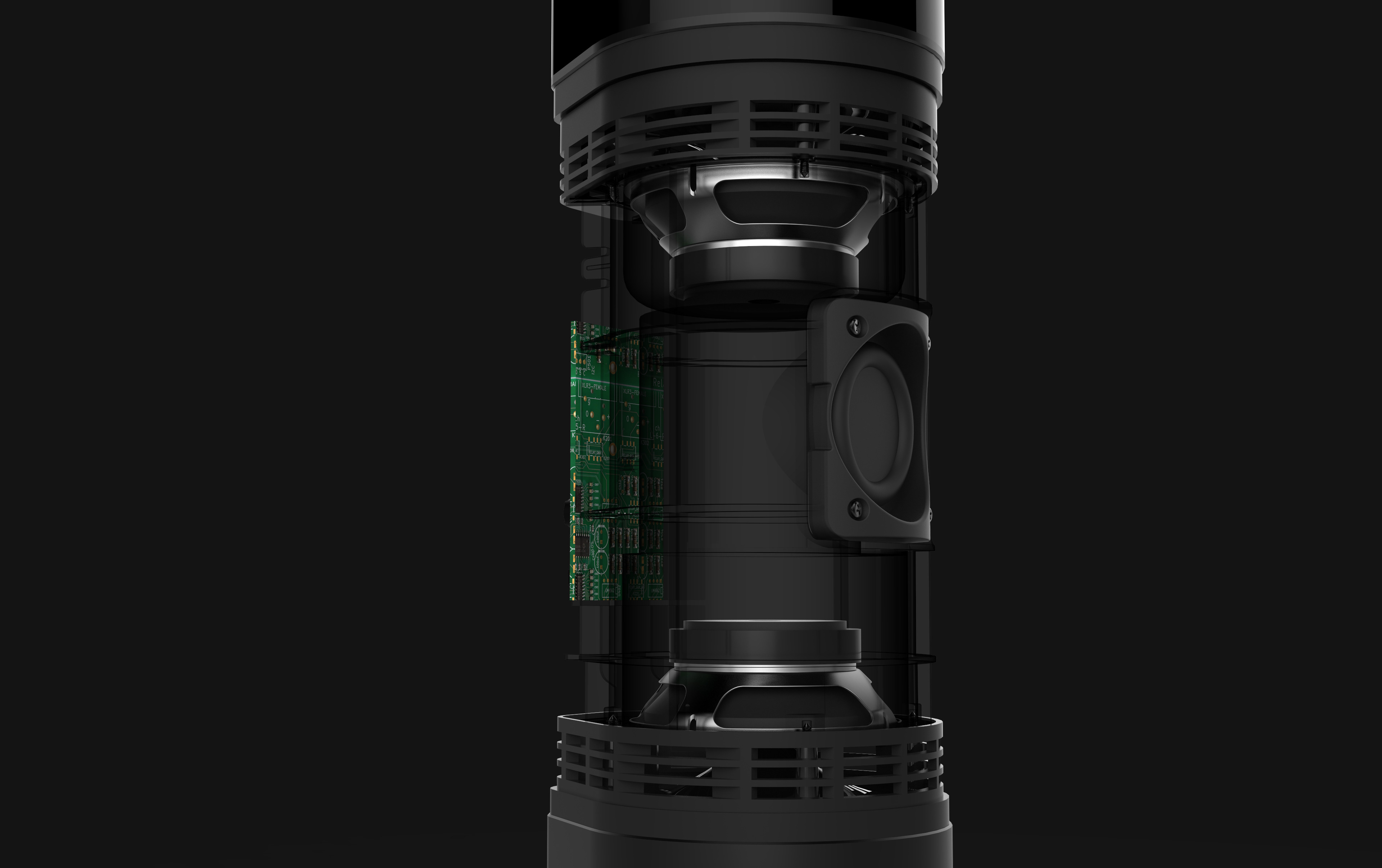

![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/9cb148c8-712a-49a6-bd04-280c8855d5da_rw_3840.jpg?h=05dc1d7f99877443930d54e7585b0a58)

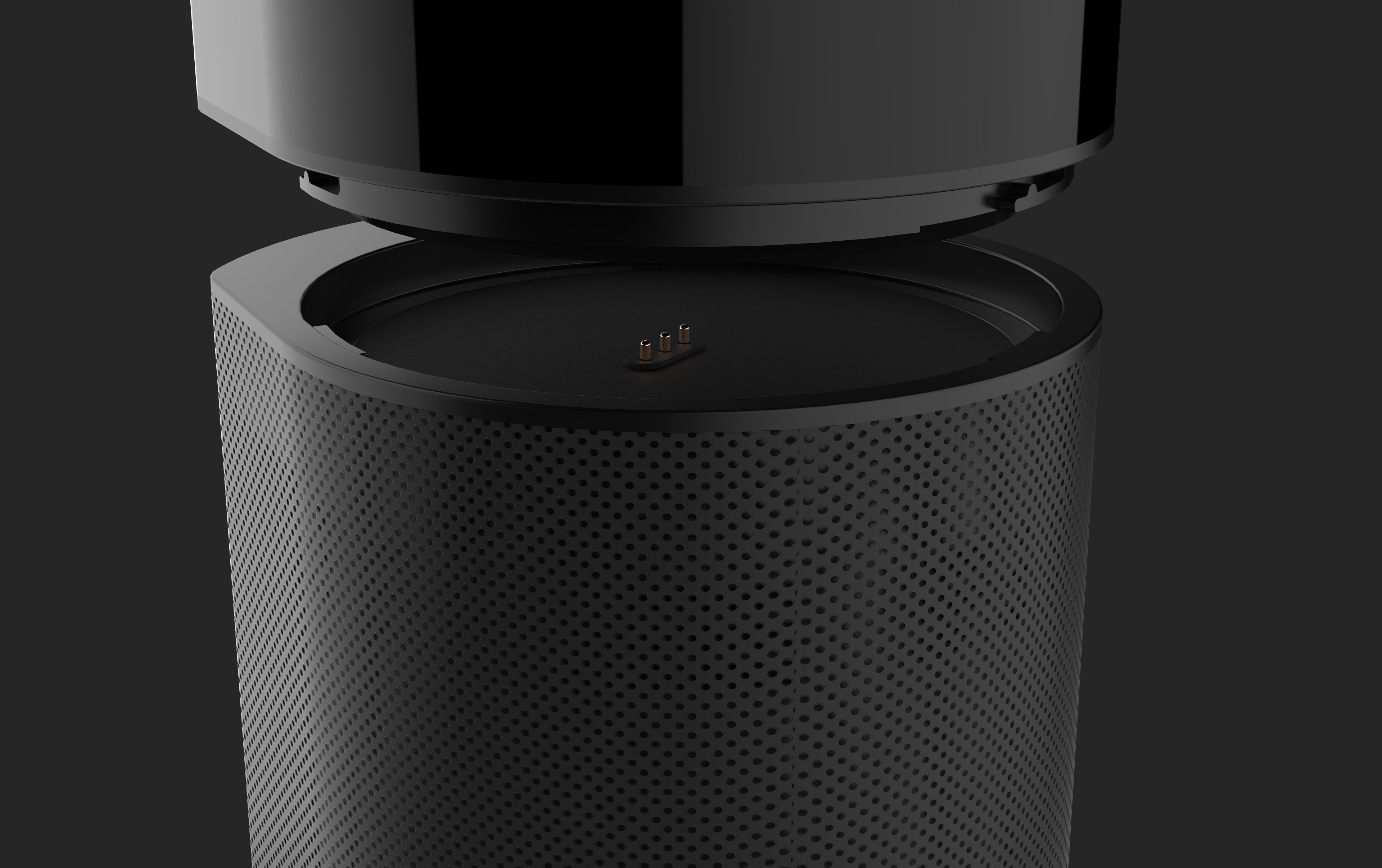

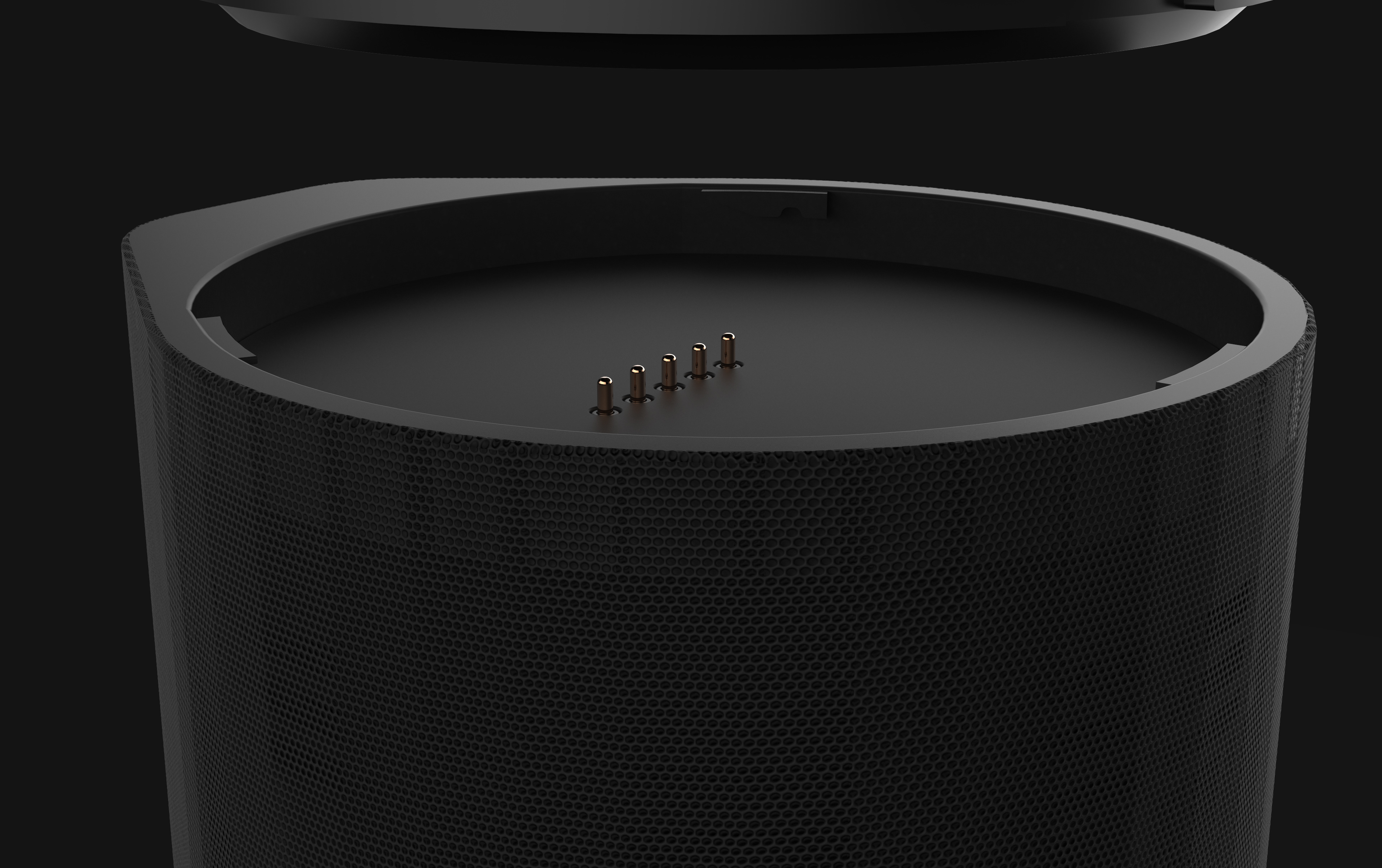

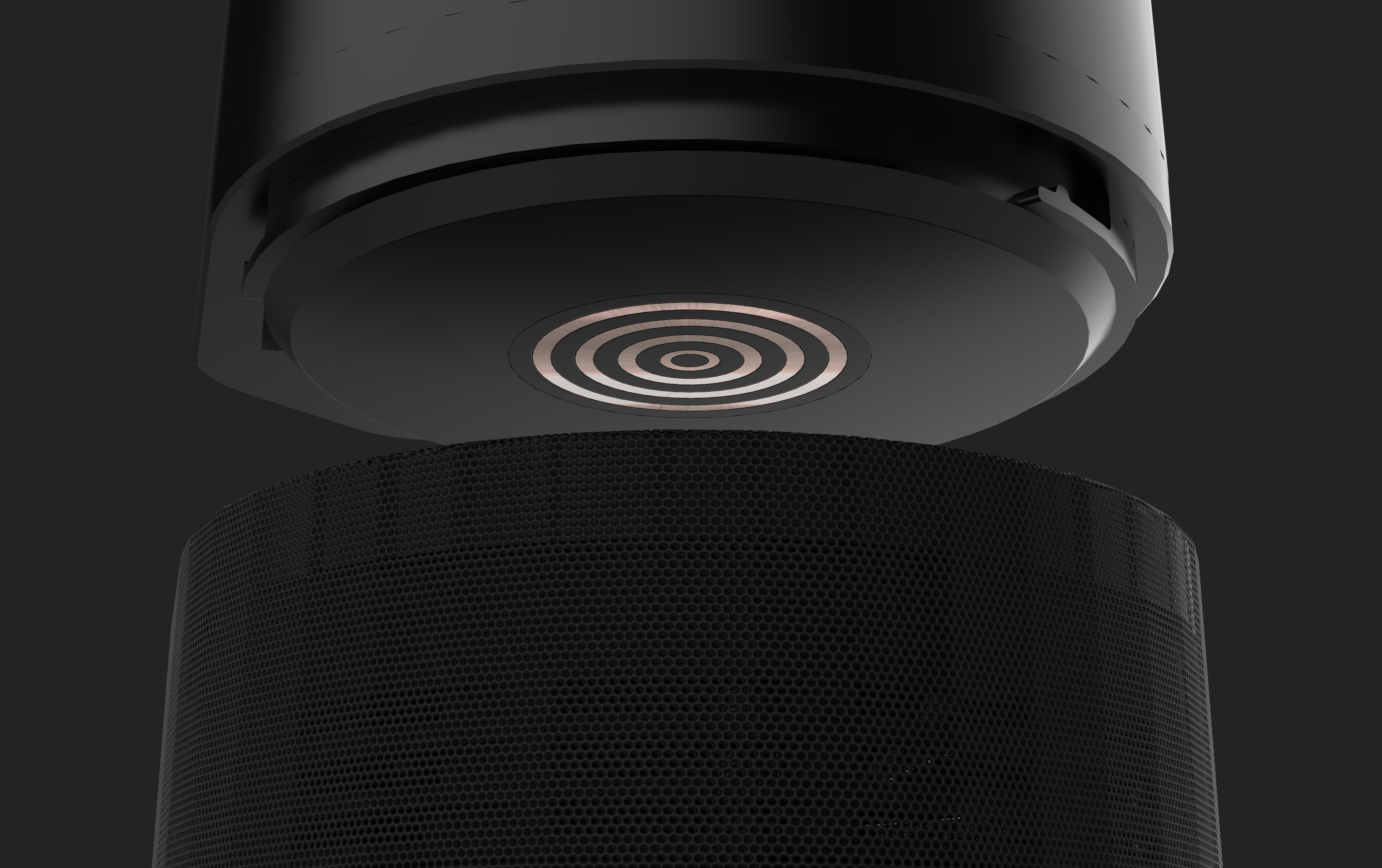

Electrical pins with contact rings provide data and power when pods are locked into place.
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/f9b9e455-64f9-4343-9f07-e5cf4d847ef5_rw_3840.jpg?h=6d21d492099caa41c0d160ff8924bcaa)

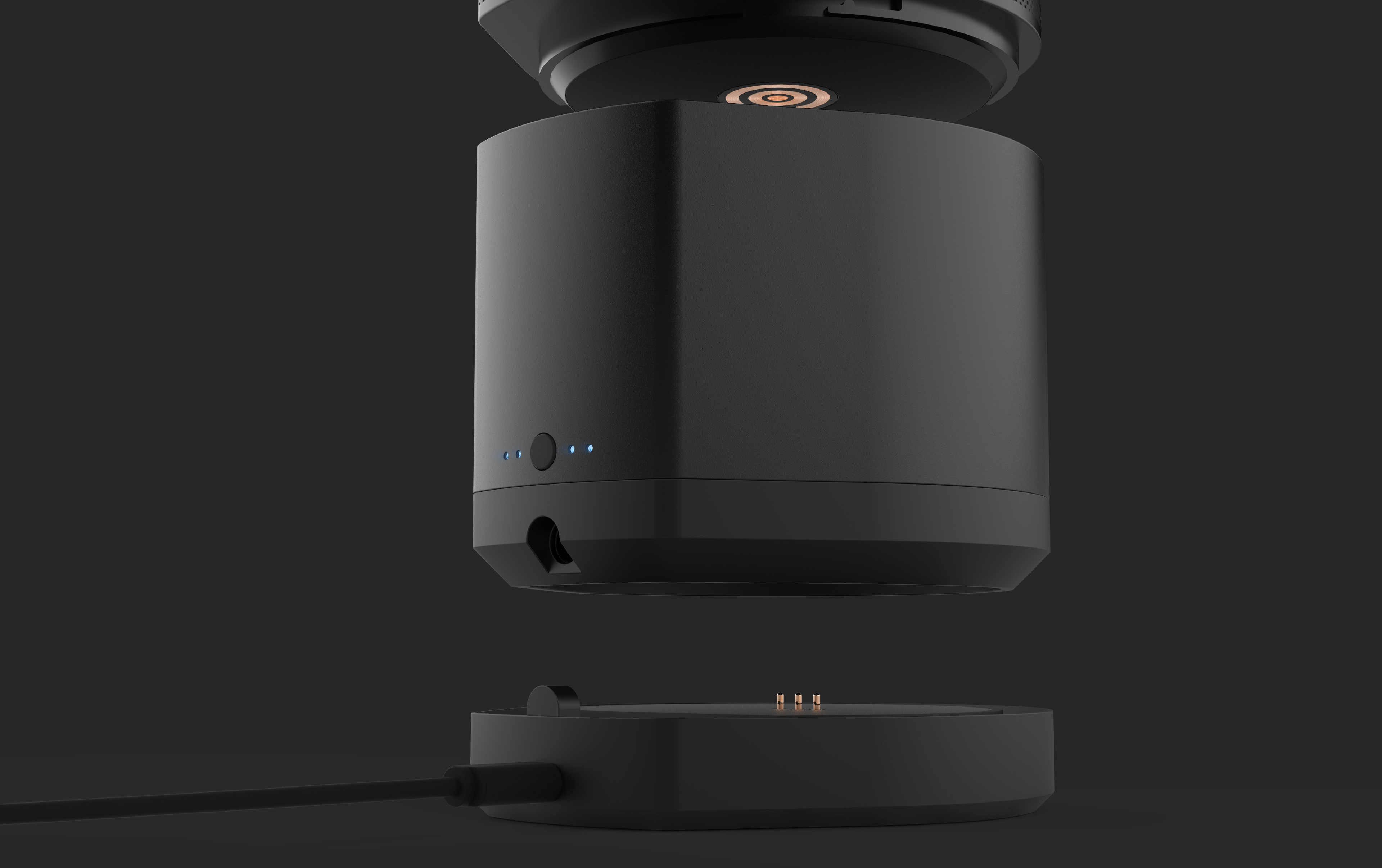

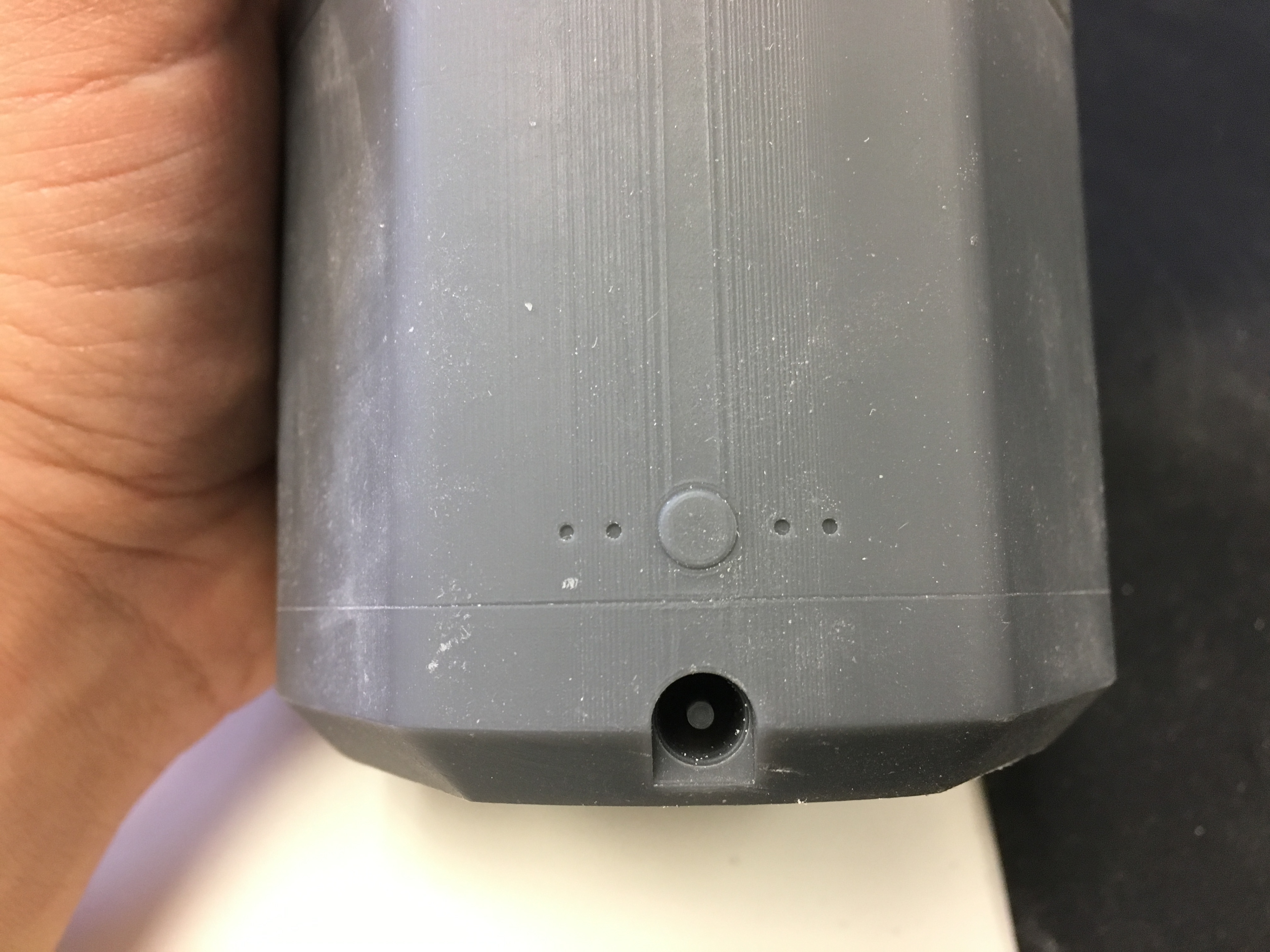

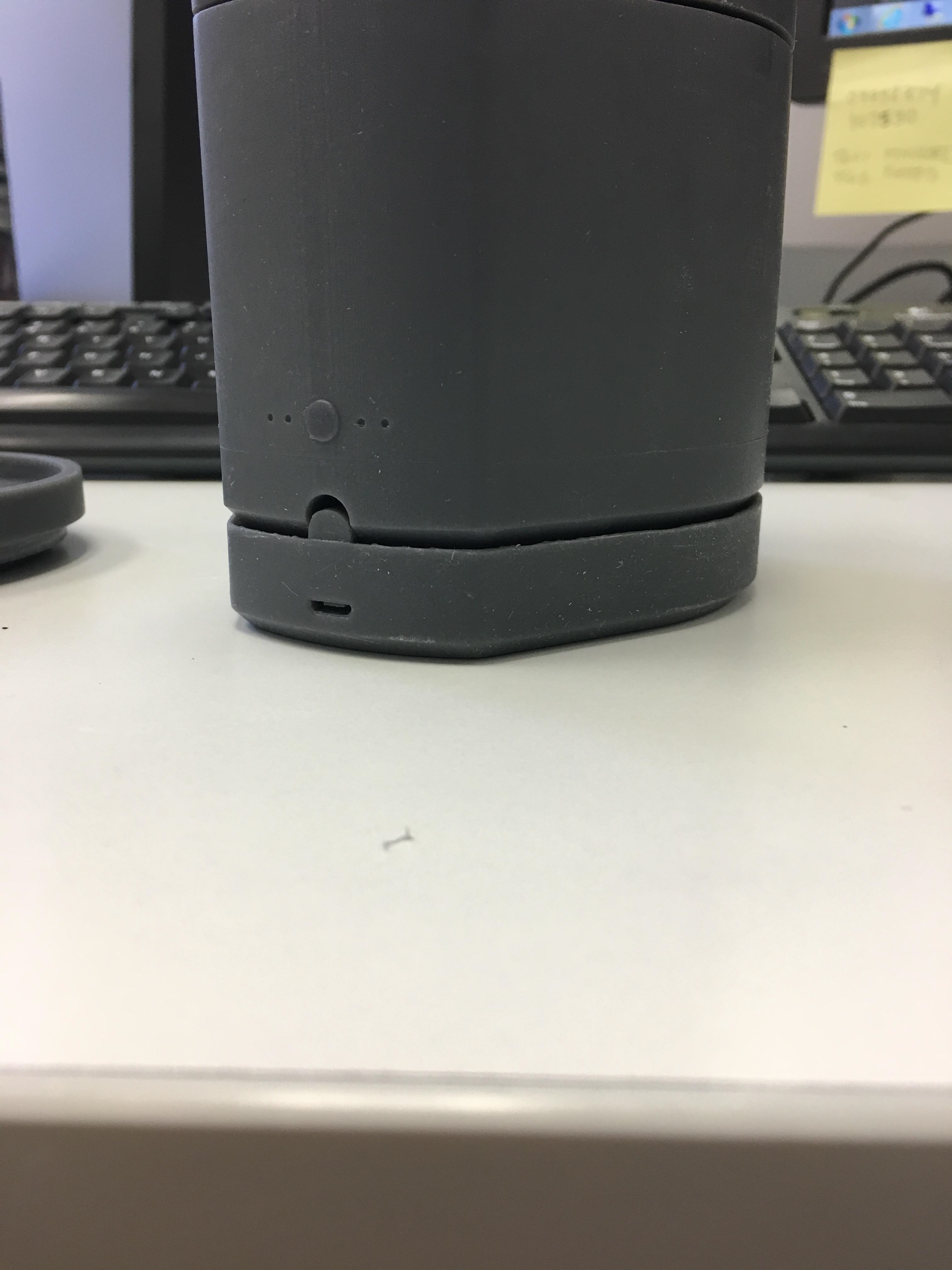

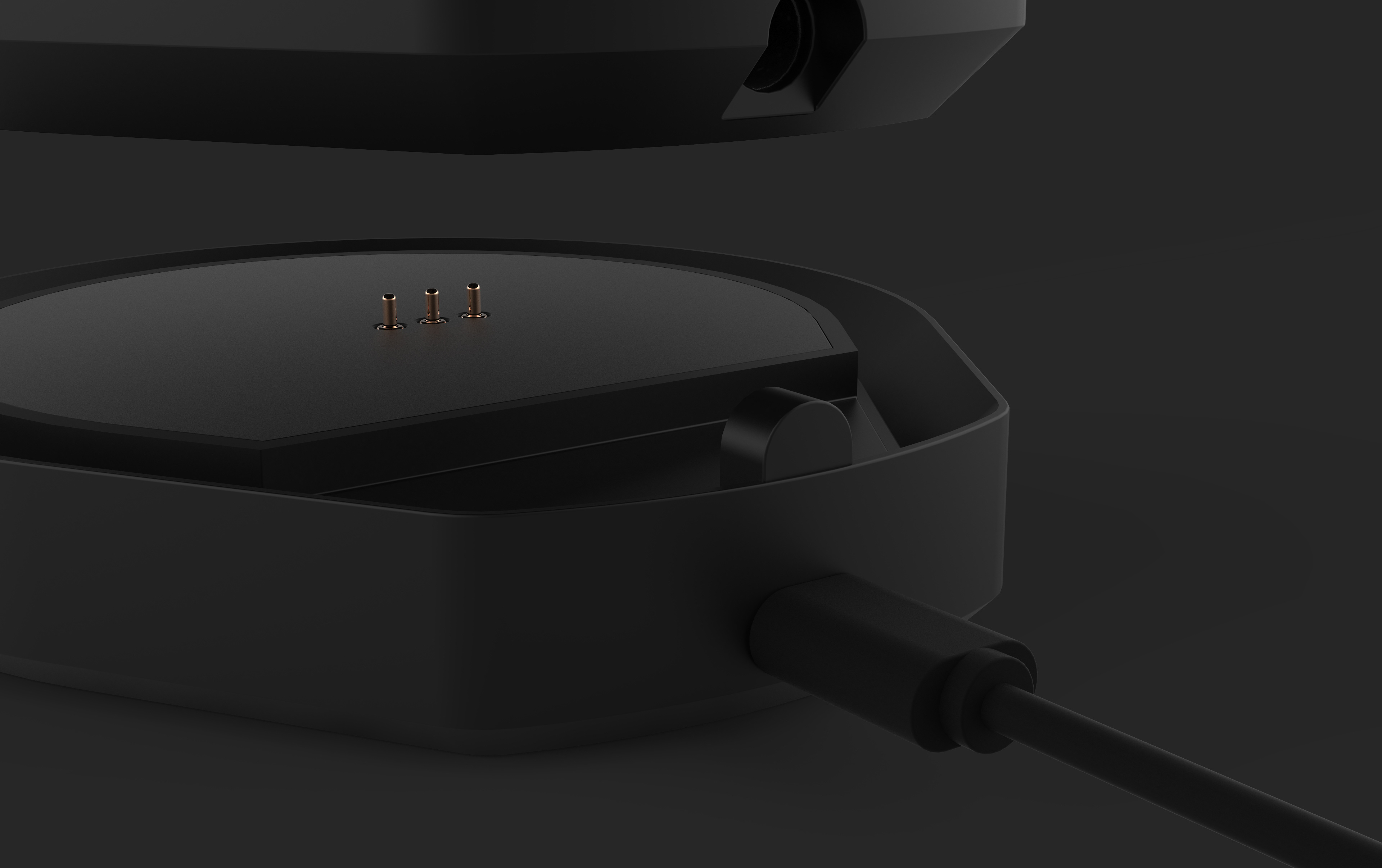

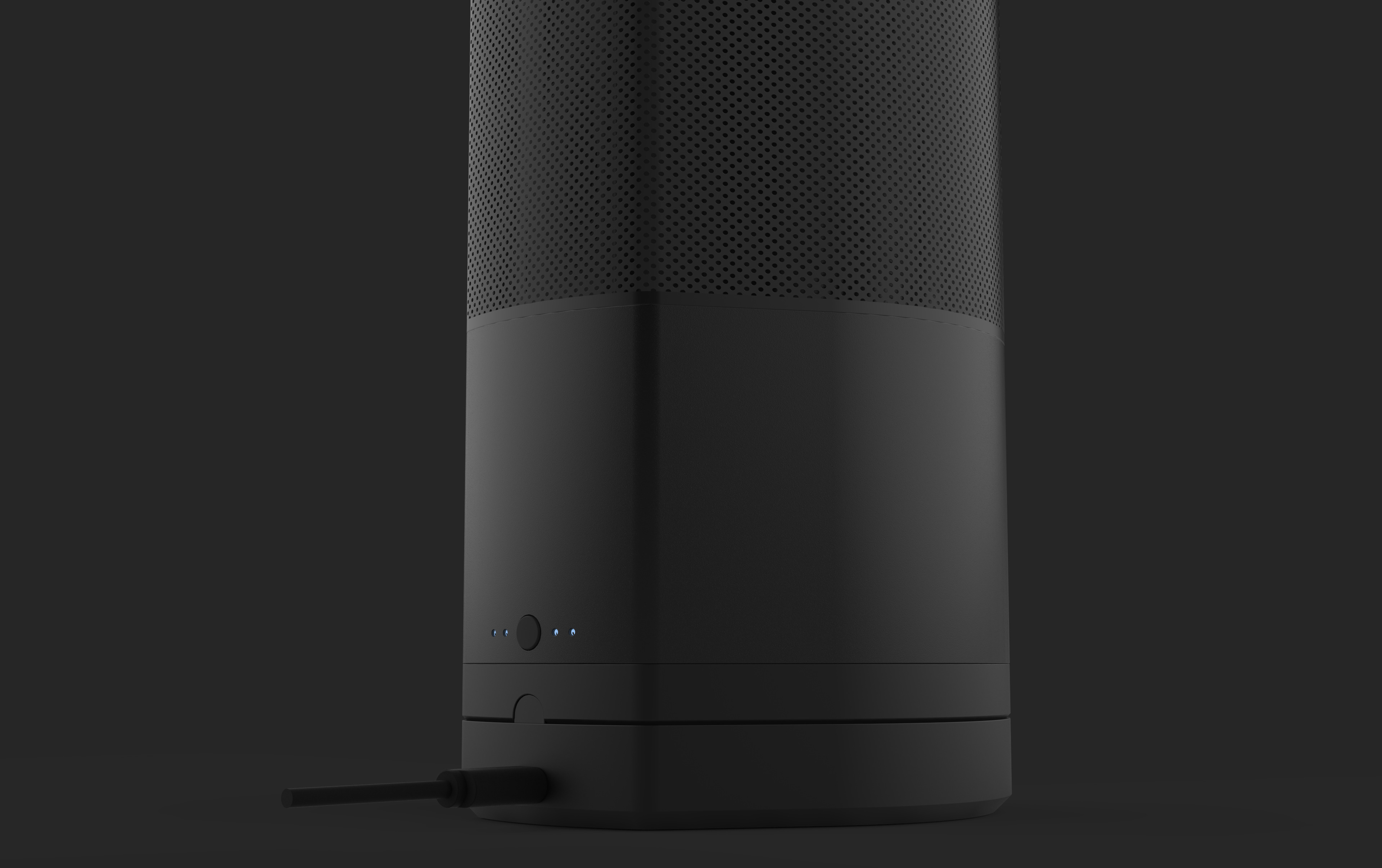

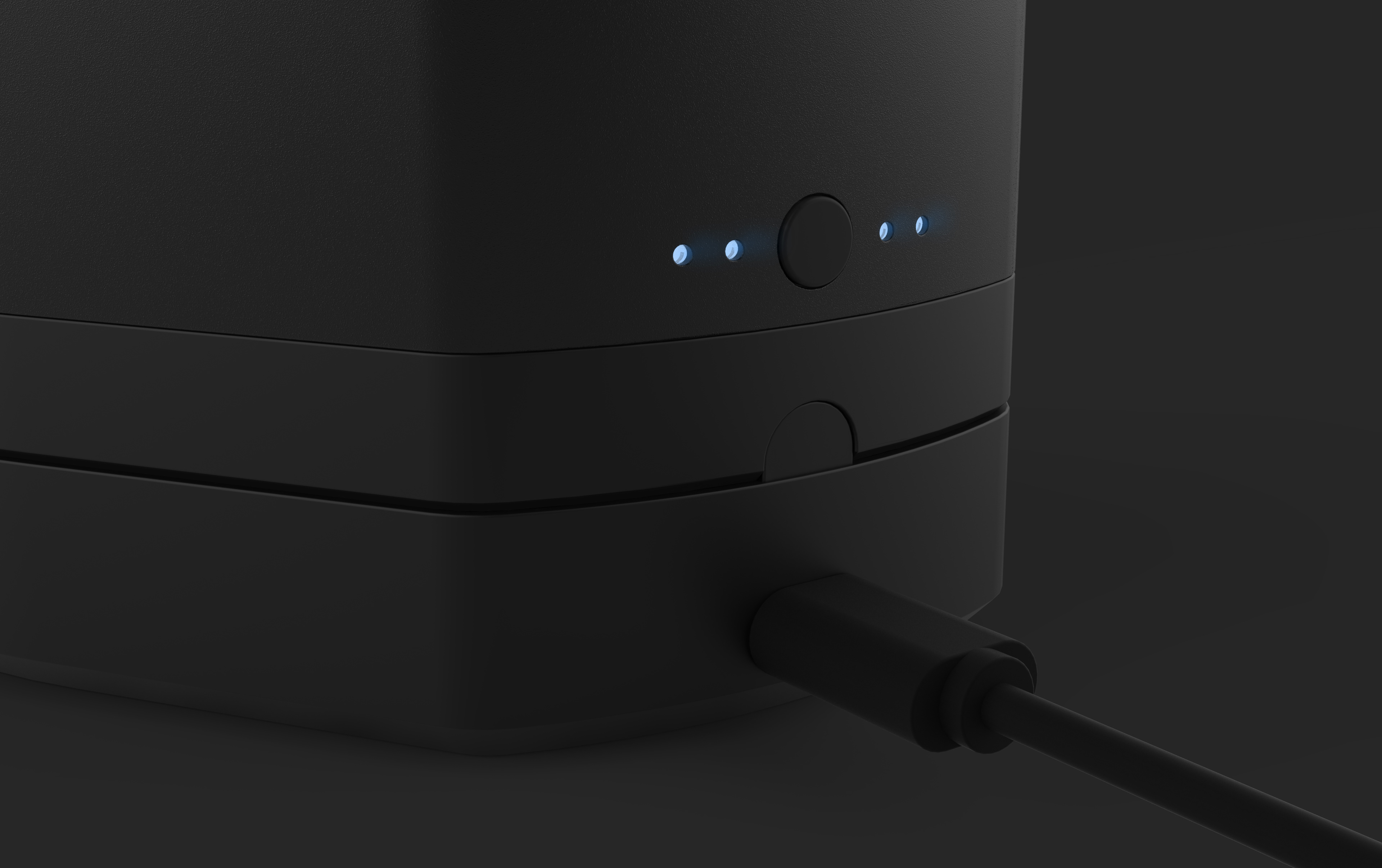

Battery base station with power button and indicator lights to show charge.
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/42029b5a-f400-4b87-971e-017819dc9543_rw_3840.jpg?h=b21ef8cc13be2b81df414293292df10a)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/283f2c3d-60c8-4065-9edf-7d8866894136_rw_3840.jpg?h=73b42aeb11b98fdece0890bb224bfc03)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/0cf3454b-c770-4362-a399-cf8be94242c0_rw_3840.jpg?h=8aa12b9d7ae93ed22d4c0f0472e3c32d)
![](https://cdn.myportfolio.com/b079b31bcc904cc0400a4fddb4a3bb09/05b5101e-e243-4b8a-a2f4-f14bb99640dc_rw_3840.jpg?h=2b7465ea39e5bc0f901d8eb29d251bd0)
